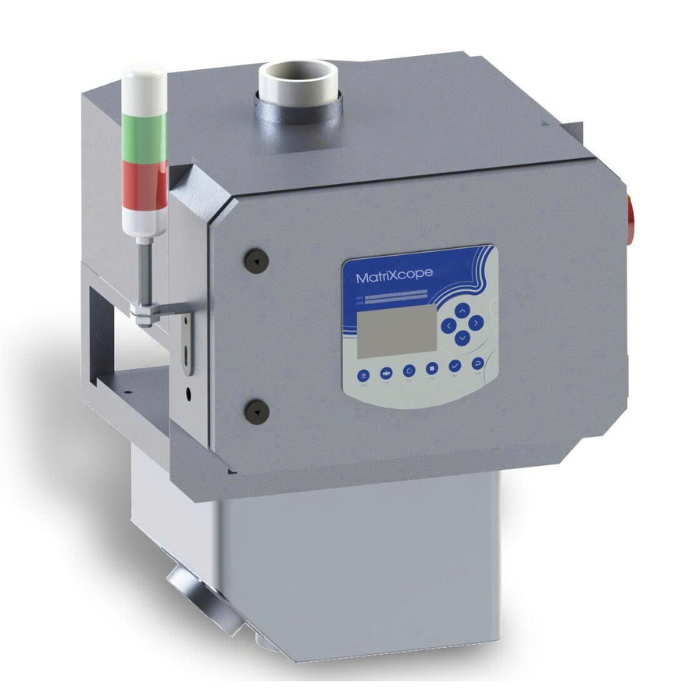

Overview of the MatriXcope MTC-9050XPRO Metal Detector
The MatriXcope MTC-9050XPRO metal detector accurately detects foreign objects such as metals (ferrous, non-ferrous, stainless steel), ceramics, stones, and glass in bottled, canned, or jarred products—even when the packaging is metal-coated.

Its detection capacity per hour depends on the product’s weight, based on a reference density of 1000kg/m³. Custom technical specifications are also available, allowing customers to order tailored models to meet specific operational requirements.
Technical specifications of the MatriXcope MTC-9050XPRO metal detector

PHYSICAL SPECIFICATIONS |
|
Specifications | P100 |
Detection Diameter | 100 mm |
Detection Sensitivity (without product) | Fe:φ0.6mm; Sus304:φ1.0-1.2mm Non-Fe:1.0mm |
Detection Capacity | 5 t/h(this detection capacity is the result of desity 1000kg/m³) |
Rejector | Active Flapper Rejector |
Operation Panel | Key Press Button LCD Panel |
Product Memory | 60 Kinds |
Pressure requirements | .≥0.5Mpa |
Environment | Temperature 10-40°c, humidity less than 85% (avoid freezing condensation. |
Power Supply | AC220V 50/60Hz |
Finishing | Sand-Blasted Finishing |
Other Function | Remote Data Transfer via Ethernet Port; Dual Frequency |
Advantages |
The machine is suitable for the powder, granule or other forms of product |
Compact design, small occupied space | |
Rapid rejecting mechanism, reducing the waste of the materials | |
In line with the GMP requirements | |
Special design , anti interference | |
Minimum Order | 1 Unit |
Delivery Time | 20 Working Days after payment |
Certificates | CE, ISO9001 |
Payment Term | T/T |
Warranty | 24 months |
Outstanding features of the MatriXcope MTC-9050XPRO metal detector
- The sensitivity is in the empty state, and the actual sensitivity is relative with factory environment and product effect.
- Detecting volume per hour is relative with product weight, the valve of the table refer to a density is 1000kg/m3.
- The products of different specification can be ordered according to customer’s special.
With its high detection accuracy, sens itivity, and customizable features, the MatriXcope MTC-9050XPRO is an ideal solution for businesses in the modern food and beverage industry. To learn more about this product and other advanced quality control solutions, please visit https://matrixcope.com/.
