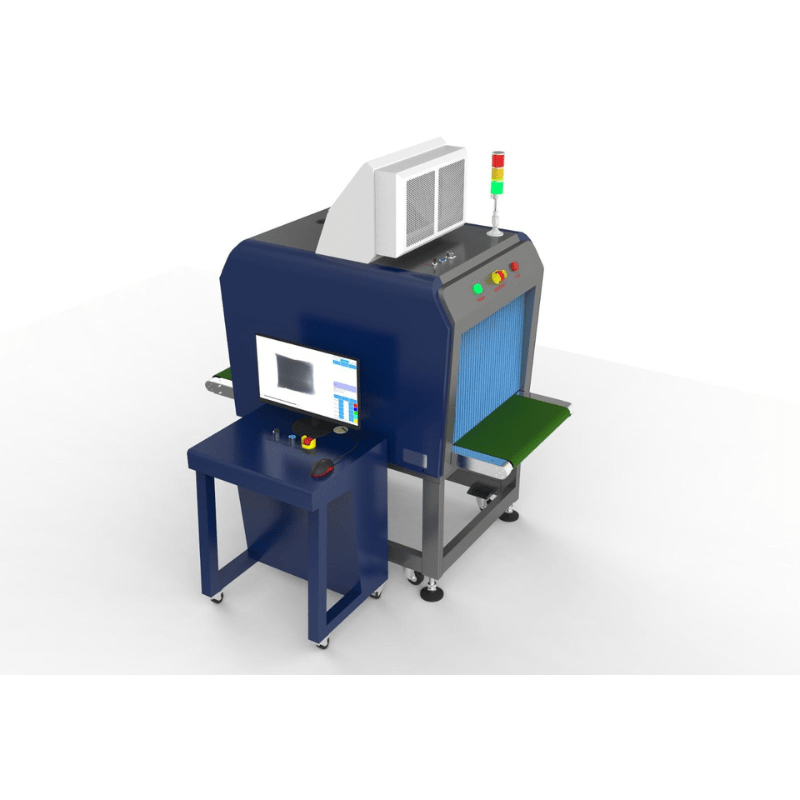

Overview of high definition x-ray scanner MatriXcope MTC-65XPROS2
In modern manufacturing, ensuring product purity and consumer safety is critical to protecting brand reputation and preventing costly product recalls. For food, garment, footwear, and handbag production lines, identifying hidden contaminants before shipping is an absolute necessity. The MatriXcope MTC-65XPROS2 is an advanced High Definition X-ray Scanner designed to detect foreign objects inside large cartons and packages with unrivaled precision.
Key features of high definition x-ray scanner MatriXcope MTC-65XPROS2
Application
Used for detecting foreign contaminants such as metal, glass, ceramic, stones, etc. inside large cartons/packages in food, garment, footwear, and handbag manufacturing factories, especially for products with aluminum foil packaging that cannot be inspected by conventional magnetic conveyor metal detectors..
Superior image quality
With Super strong detectors and special designed detection system and x-ray generator, it provides x-ray images which are much clearer than that of the normal x-ray baggage scanners.
Unique system
Embedded Linux operating system with multi-core arm has simple architecture, low power consumption, energy-saving and environmental protection, and real-time status monitoring functions, to master the working process of equipment real time.
Safety and environmental protection
It meets the safety and environmental protection standards, and the one-key turn off and intelligent energy-saving had won patent.
Stable and reliable
Product R&D and production process is strictly followed ISO9001 quality management system, through strict high/low temperature test, electrostatic interference test, damp heat test and vibration test, to ensure that the product can run continuously.
Developed under strict ISO9001 quality management, the MTC-65XPROS2 has passed rigorous temperature, electrostatic interference, and vibration testing to guarantee continuous operation. It is fully certified by ISO19001, CE, RoHS, FDA, and FCC.
|
PHYSICAL SPECIFICATIONS |
|
| Best detection accuracy | Stainless steel SUS304 ball: φ0.4mm, ceramic ball: φ0.8mm, glass: φ1.0mm |
| Tunnel Size (LxH) | 650mm (width) * 500mm (height) |
| Conveyor height | 700 mm |
| Conveyor belt speed | 0.2～0.6m/s adjustable |
| Belt bearing capacity | 30kg |
| Parameter setting | Self learning / manual adjustment |
| Cooling method | Industrial air conditioner |
| Alarm | Sound and light and points showing on the monitor |
| Optional rejecter | NG shutdown, air jet, swing arm, push rod, sinking, flipping, etc. to be customized |
| RADIATION SAFETY | |
| Single inspection dose | less than 2.1μGy |
| Radiation leakage | less than 1.0μGy/h at any point 5 cm outside the external
surface |
| Radiation protection | Double-layer staggered, wear-resistant, 2-5mm lead curtain |
| X-RAY GENERATOR | |
| Tube voltage | 30-80KV, adjustable |
| Tube current | 0.3-3mA, adjustable |
| Cooling/working cycle | Sealed oil cooling/100% |
| STRUCTURAL DESIGN | |
| Machine frame | Advanced industrial design concepts, rust-proof, anti- corrosion, anti-cable damage-proof, solemn and stable |
| Anti-pinch device | Unique design under the belt at the tunnel entrance and exit, safe and reliable |
| High-quality belt | High-strength polyester silk woven 1.2mm green PVC rubber belt, with strong lateral stability |
| INSTALLATION DATA | |
| Dimensions (without receiving rack) | 1500mm (length) * 830mm (width) * 1530mm (height) TBC |
| Working temperature/humidity | 5℃～45℃/0%～90% (non-condensing) |
| Storage temperature/humidity | -20℃～60℃/10%～90% (non-condensing) |
| Power supply | AC 220V (±10%) , 50Hz±3Hz |
| Power consumption | 0.5KW |
| Packing in wooden case | 170*95*160cm，350kg TBC |
| COMPLIANCE | |
|
Certificates |
ISO19001 CE RoHS FDA FCC |
