Conveyor Metal Detector MatriXcope MTC-M6030XPRO

The MTC-M6030XPRO Conveyor Metal Detector is an effective inspection solution for detecting metal contaminants in packaged products during production

Categories: AUTOMATION MACHINE, METAL DETECTORS

Product Documents

Downloads

Catalog-Conveyor-Metal-Detector-Matrixcope-MTC-M6030XPRO

Details
Specifications

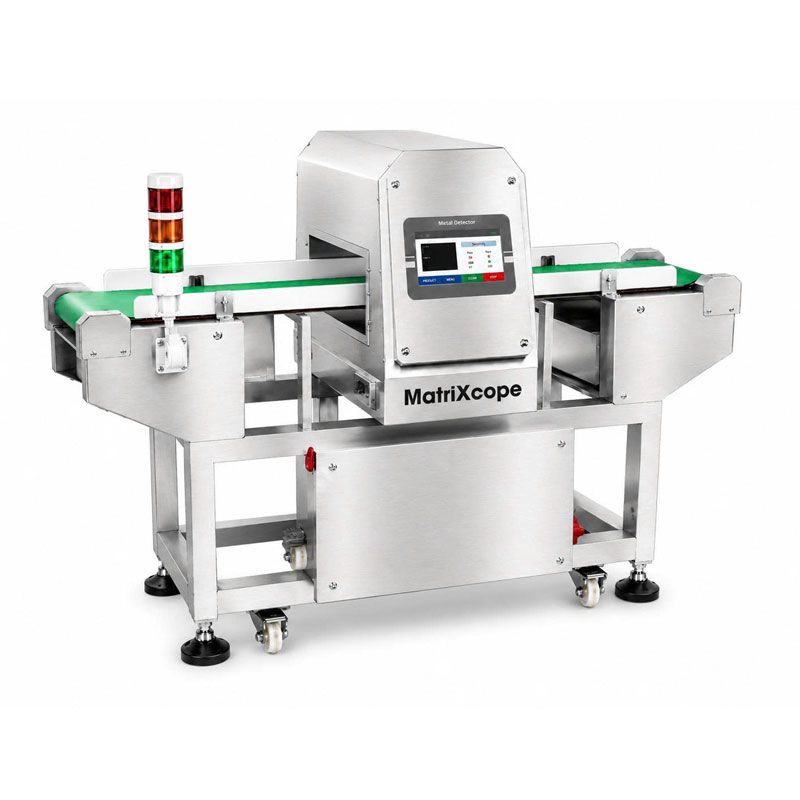

Overview of conveyor metal detector MatriXcope MTC-M6030XPRO

The MTC-M6030XPRO Conveyor Metal Detector is an effective inspection solution for detecting metal contaminants in packaged products during production. It helps manufacturers improve product safety, reduce contamination risks, and maintain consistent quality before goods reach customers.

Key features of conveyor metal detector MatriXcope MTC-M6030XPRO

User Friendly

Auto learning Store 100 product settings.
Easily connect with printer, labeling machine.
Data can be stored up to 1.

Customizable

Customizable for rejector.
Multiple language.

High Sensibility & Stability

The accuracy up to FE 5mm, NON-FE 2.0mm, SUS304 2.5mm.
Strong anti-interference, and minimizing false.

Easy Maintenance

The conveyor easy.
All stainless steel 304.
Detachable belts design is easy to clean and.

Application:

Bagged snacks, meat, frozen food, plastic bottle drink, toiletries, etc.

5/5 (1 Review)

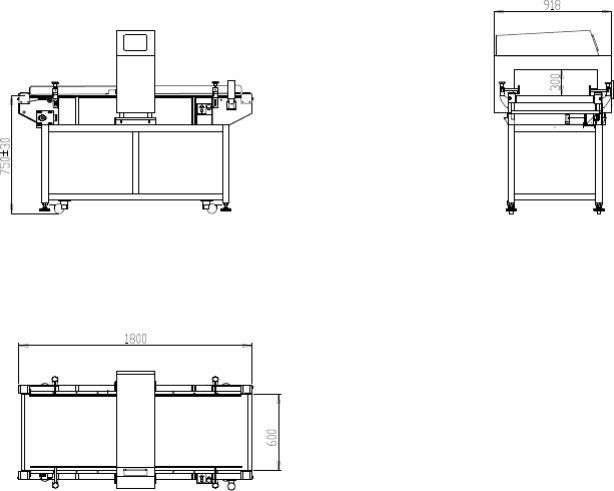

Height (mm)	300
Width (mm)	600
Body Length (without rejector)	1500mm
Transmission Speed	30m/min
Sensitivity(mm) without product	FE: 1.5 NFE: 2.0 SUS304: 2.5
Operation	5.5’’ Touch Screen
Power Supply	AC220/110V±10% 50Hz/60Hz
Alarm	Audible and visual alarm
Rejector	Multi Rejector Selectable
Waterproof Level	IP54/IP66
Product Preset	High-Speed A/D Sampling Module
Operating Requirement	Temperature: 0℃～ 40℃, Humidity: 30%～ 95%
Main Structure	SUS304 Stainless Steel

*Remarks: The technical parameter above namely is the result of sensitivity by inspection only the test sample on the belt. The actual sensitivity would be affected according to the products being inspected
