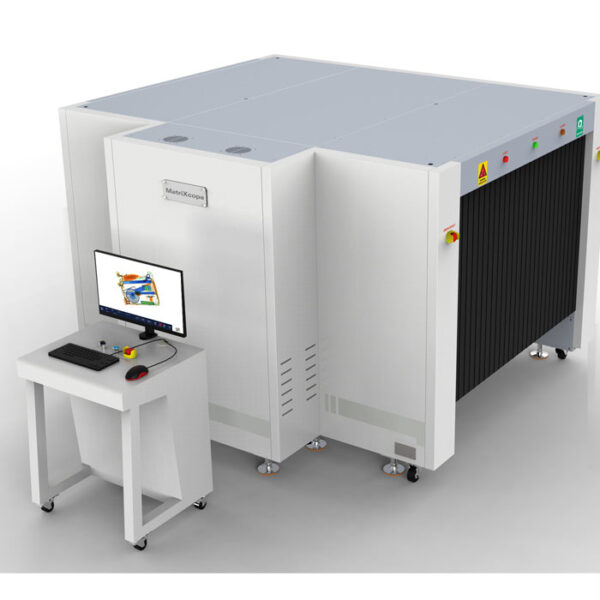

Luggage Scanning X-ray Machine MatriXcope MTC-XR1010D
The MatriXcope MTC-XR1010D is a specialized luggage scanning X-ray machine designed to enhance airport security by providing high-resolution images of the contents of passengers’ luggage.
Product Documents
Downloads
The MatriXcope MTC-XR1010D is a specialized luggage scanning X-ray machine designed to enhance airport security by providing high-resolution images of the contents of passengers’ luggage. Here’s an in-depth look at its features, applications, and advantages.
Outstanding advantages of the MatriXcope MTC-XR1010D luggage scanner
- The MTC-XR1010D utilizes advanced X-ray technology to produce clear, detailed images of the contents of scanned luggage. This high-resolution capability allows security personnel to identify suspicious items more accurately.
- This machine features dual-view imaging, meaning it captures X-ray images from two different angles. This dual perspective enhances the detection capabilities, making it easier to identify objects that might be hidden or obscured from a single viewpoint.
- Equipped with sophisticated software, the MTC-XR1010D can automatically identify potential threats, such as firearms, knives, and explosives. The software uses algorithms to analyze shapes, densities, and materials, alerting operators to items that require further inspection.
- The machine is designed with an intuitive interface that allows operators to easily navigate and interpret the X-ray images. Features include zoom, image enhancement, and various color schemes to differentiate between materials.
- The MTC-XR1010D is capable of scanning a large volume of luggage quickly, making it suitable for busy airport environments where efficiency is critical.
- Built to withstand the rigors of constant use in high-traffic areas, the MTC-XR1010D is constructed from durable materials and components, ensuring reliable performance over time.
Contact to order X-ray Baggage scanner MatriXcope MTC-XR1010D
MatriXcope specializes in providing the MatriXcope MTC-XR1010D baggage scanner with the most modern technology today. Ensure each product works according to user needs as well as brings practical benefits at work. If you believe and want to install a people counting machine, please contact MatriXcope immediately via hotline: +1 718-417-5311 for advice and installation of a scanner for your business.
In addition to providing baggage scanners, MatriXcope also provides other comprehensive security products such as metal detector systems, supermarket security magnetic gates, access control gates… to learn more useful products than you. You can visit the website: https://matrixcope.com/ to track suitable equipment.
| General Specifications | |
| Conveyor Speed(m/s) | 0.22 m/s forward or backward |
| Conveyor height(mm) | 309 mm |
| Conveyor capacity | 200 kg |
| Frame design | 304 stainless steel, 2-5 mm cold rolled plate and square steel, double-layer staggered lead impregnated safety curtain |
| X ray dose/inspection | ≤4.8μSv |
| X ray leakage | ≤1μSv/h at any point 5 cm outside the external surface. FDA standard is ≤5μ |
| Steel penetration | 32 mm guaranteed |
| Wire Resolution | Horizontal AWG38 / Vertical AWG36 guaranteed |
| Penetration Resolution | AWG30 |
| Spatial resolution | 1.3mm Horizontal, 1.3mm Vertical |
| Power Consumption | max. 1.5KW |
| Noise | <60 dB |
| Film Safety | Guarantee ASA/ISO1600 Film |
| Imaging System | |
| Detector | 4352 channels in two L-Shaped Arrays |
| Images process | Color / black and white imaging, local enhancement, high penetration, low penetration, super enhancement, organic stripping, inorganic stripping, reverse color, brightening, darkening, gray level change/variable contrast, continuously zoom maximum 64x, pseudo color imaging, organics enhancement, suspicious item alarm and notation, edge enhancement imaging,
etc. |
| Explosives & Narcotics Detection | Suspicious organics highlight(atomic number Zeff=7,8,9) |
| Suspecious Alarm | Alarm and box line the suspicious objects including hard to penetrate material, explosives and drugs |
| Image pullback | 30 images |
| Image Archive | Up to 50,000 images stored automatically,
enable transferring to USB disk, and converting to JPG, BMP and other formats |
| Miscellaneous Functions | Time/date display, counters, user management, system-on/x-ray-on timers, power on self test, builtin diagnostic facilities, bidirection scanning, forced scanning, image
search and export, system setting, system log, system standby and stimulant training,etc |
| Options | UPS, additional roller, remote work station, network integration, video monitoring, etc. |
| Anode Voltage | 160 KV |
| Beam direction | Vertical and Horizontal |
| Cooling / Duty Cycle | Sealed oil cooling /100% |
| Physical Specifications | |
| Tunnel size | 1007(W)*1008(H) mm |
| Unit weight | 1350 kg |
| Unit size | 3909(L)*1781(W)*1878(H) mm |
| after packed on wooden pallet | |
| Gross weight | 1600 kg |
| Packing size | #1: 294*218*216cm |
| #2: 120*65*100cm | |
| Operating Environment | |
| Operation temperature/Humidity | 5℃-40℃ / 0%-90%(non-condensing) |
| Storage Temperature/Humidit
y |
-20℃ to 60℃ / 10%-90%(non-condensing) |
| Operation Power | 220VAC(±10%) 50±3Hz (Options: 110-120V, 230-
240V, 60Hz) |
| Stabilizer and UPS | Optional |
| Computer and other | |
| Monitor | Two 21.5-inch LCD monitor, 1920*1080, no console desk |
| Console | One |
| CPU | Intel (R) i3 (R) 3.3GHz |
| RAM | 4GB |
| Hard Disk | 1T |
| Keyboard | Special designed |
| Platform | Windows 10 |
| Electric roller | Three-phase |
| Compliance | |
| International | * ISO19001; ISO14001; ISO45001
* CE RoHS * FDA FCC |
