Vertical Packing Machine MatriXcope MTC-520BGGD
The Vertical Packing Machine MatriXcope MTC-520BGGD is specifically designed for accurate dosing and efficient packaging of fluidic or low-fluidity materials.
Product Documents
Downloads
Overview of vertical packing machine MatriXcope MTC-520BGGD
The Vertical Packing Machine MatriXcope MTC-520BGGD is specifically designed for accurate dosing and efficient packaging of fluidic or low-fluidity materials. It is ideal for handling products such as milk powder, albumen powder, rice powder, coffee powder, solid beverages, condiments, white sugar, dextrose, food additives, corn powder, and icing sugar.
In addition, this machine is also well-suited for packaging items in the pharmaceutical, animal feed, detergent powder, and agricultural pesticide sectors, ensuring versatility across various industries.
Technical specifications vertical packing machine MatriXcope MTC-520BGGD
|
PHYSICAL SPECIFICATIONS |
|
| Packing Speed | 10-60 bpm |
| Bag Size | 50-350(L)*50-250(W)mm |
| Bag Type | pillow bag, gusset bag, hole punching bag, vacuum bag |
| Film Width | 120-520mm |
| Film Thickness | 0.04-0.09mm |
| Film Material | BOPP/CPP,BOPP/VMCPP,BOPP/PE,PET/VMPET/PE,PET/PE |
| Pulling Belt Type | synchronous belt film pulling |
| Air Consumption | 0.8Mps 0.4m3/min |
| Power Supply | single phase 220V 50HZ/60HZ, 4.2KW |
| Machine Dimension | 1,560(L)*1,160(W)*1,530(H)mm |
| Machine Weight | 480kg |
Outstanding features of Vertical packing machine MatriXcope MTC-520BGGD
- Advanced design, reasonable structure, convenient operation and maintenance.
- Precise positioning with servo film running system and synchronous belts to pull film, ensuring stability and reliability.
- Automatic correcting function; time and film saving to improve the reliability and intelligence of the whole machine.
- Multiple automatic alarm and protection functions to minimize the loss
- Full packaging process of measuring, feeding, filling, bag forming and date printing, air in/out, counting and finished product conveying in one automatic operation by the machine equipped with measurement device.
- Bag type: pillow bag, gusset bag and hole punching bag.
Combining advanced technology, user-friendly controls, and high automation, the vertical packing machine MatriXcope MTC-520BGGD stands out as a premier solution for modern, high-demand packaging operations. Designed to optimize productivity, reduce material waste, and deliver consistent packaging quality, this machine is a reliable asset for businesses focused on operational efficiency and precision.
Explore more innovative packaging technologies from MatriXcope at https://matrixcope.com.
Technical specifications vertical packing machine MatriXcope MTC-520BGGD
|
PHYSICAL SPECIFICATIONS |
|
| Packing Speed | 10-60 bpm |
| Bag Size | 50-350(L)*50-250(W)mm |
| Bag Type | pillow bag, gusset bag, hole punching bag, vacuum bag |
| Film Width | 120-520mm |
| Film Thickness | 0.04-0.09mm |
| Film Material | BOPP/CPP,BOPP/VMCPP,BOPP/PE,PET/VMPET/PE,PET/PE |
| Pulling Belt Type | synchronous belt film pulling |
| Air Consumption | 0.8Mps 0.4m3/min |
| Power Supply | single phase 220V 50HZ/60HZ, 4.2KW |
| Machine Dimension | 1,560(L)*1,160(W)*1,530(H)mm |
| Machine Weight | 480kg |
Related products
Vertical packing machine MatriXcope MTC-420BGGD is suitable for dosing and packaging fluidic or low fulidity materials, like milk powder, albumen powder

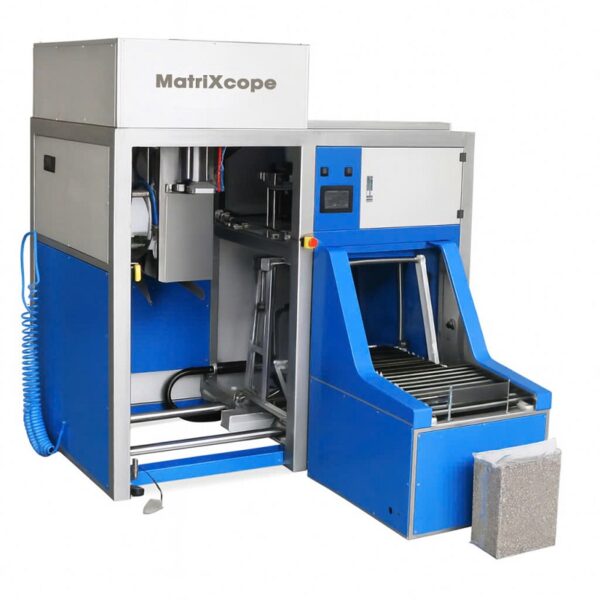

The MatriXcope MTC-P2400PRO is an advanced vacuum packing machine specially designed for large-volume, brick-shaped packaging (10–30 kg) of granular materials such as cashew, peanut, hazelnut, and other nuts or grain-type products.
