Metal Detector MatriXcope MTC-M7035XPRO
MatriXcope MTC-M7035XPRO conveyor belt metal detector for detecting ferrous, non-ferrous and stainless steel contaminants in food and industrial production lines.
Product Documents

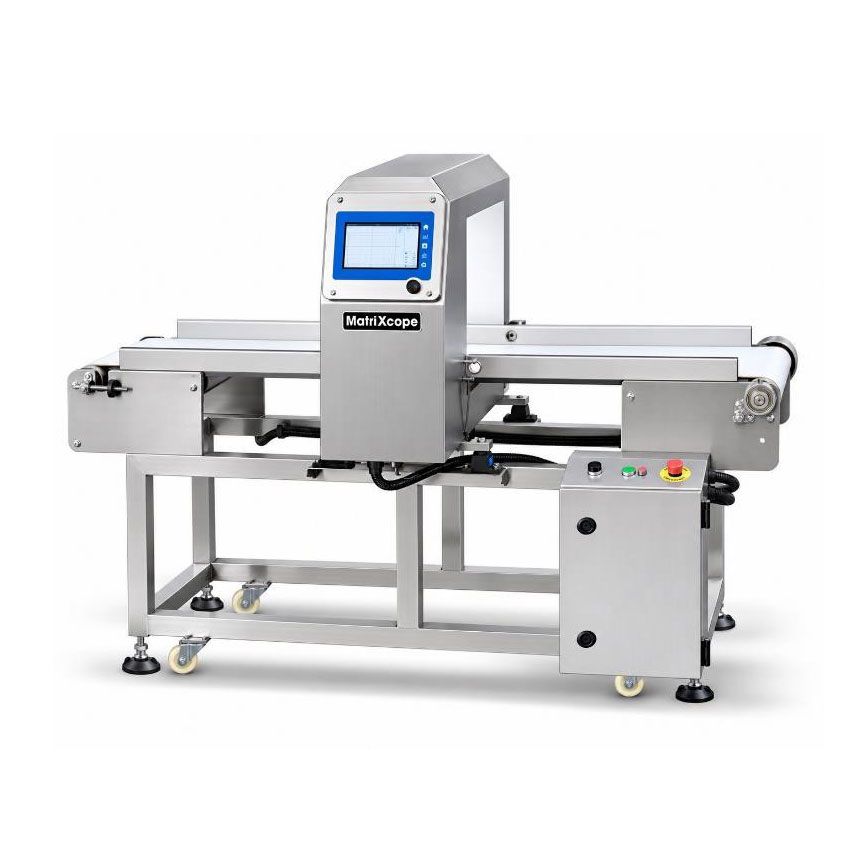

MatriXcope MTC-M7035XPRO Metal Detector
The MatriXcope MTC-M7035XPRO Metal Detector is a conveyor belt metal detection system designed to identify ferrous, non-ferrous, and stainless steel contaminants in products during production. It is suitable for manufacturers that require reliable and continuous quality inspection.
Reliable metal detection
The MTC-M7035XPRO helps detect unwanted metal contaminants before products move to packaging or distribution. When metal is detected, the system can activate an alarm, stop the conveyor belt, or send an output signal.
Hygienic and easy-to-clean design
The machine features a stainless steel structure with food-grade contact materials. Its fully welded frame helps reduce dust accumulation, while the easy-to-disassemble design supports faster cleaning and maintenance in food production environments.
Flexible operation
The system supports digital and automatic sensitivity adjustment and can store settings for up to 99 products. This makes it convenient for production lines handling different product types.
Applications
The MTC-M7035XPRO conveyor belt metal detector can be used in:
- Food and beverage processing
- Seafood and frozen food
- Meat and poultry
- Bakery and confectionery
- Agricultural and packaged foods
- Pharmaceutical and chemical industries
Why choose the MTC-M7035XPRO?
With reliable metal detection, hygienic construction, simple operation, and flexible product settings, the MatriXcope MTC-M7035XPRO is a practical solution for improving product quality and contamination control on automated production lines.
| Detect width | 700mm |
| Detect height | 350mm |
| Sensitivity*(mm) | Fe≥Φ2.5mm; Non-Fe≥Φ3.0mm,SUS≥Φ3.5mm |
| Touch screen | 7″ TFT （Kinco） |
| Sensitivity adjustment | Digital and Auto-set |
| Alarm method | Alarm lamp , Belt stops , Output signal, |
| Product storage | 99 kinds |
| Loading Capacity | 0-25kg |
| Conveyor belt width | 650mm |
| Conveyor belt speed | 25m/min |
| Conveyer belt off the ground | 700mm |
| Machine material | From right to left |
| Machine material | Stainless steel 304 |
| Language | Chinese / English |

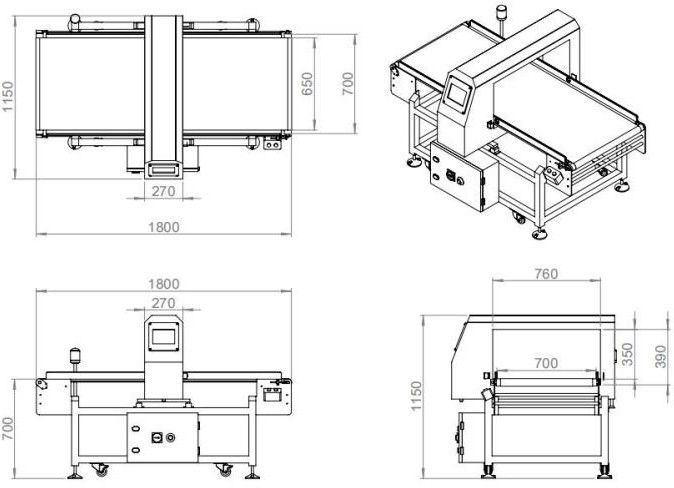

| Dimension | 1800x1150x1150mm |
| Net weight | 275KG |
| Power supply | 380V/50-60Hz |
