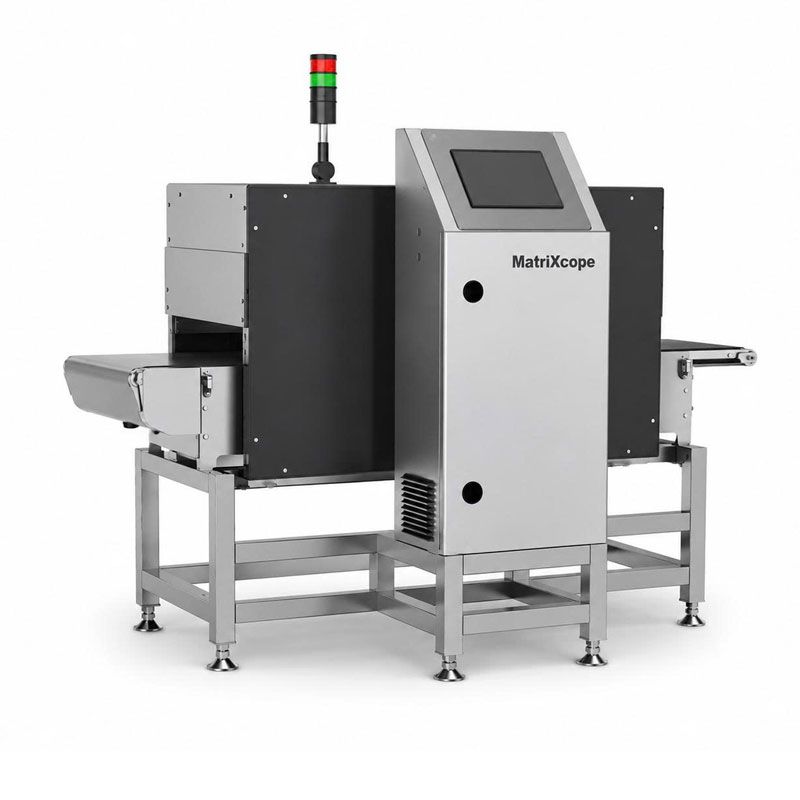

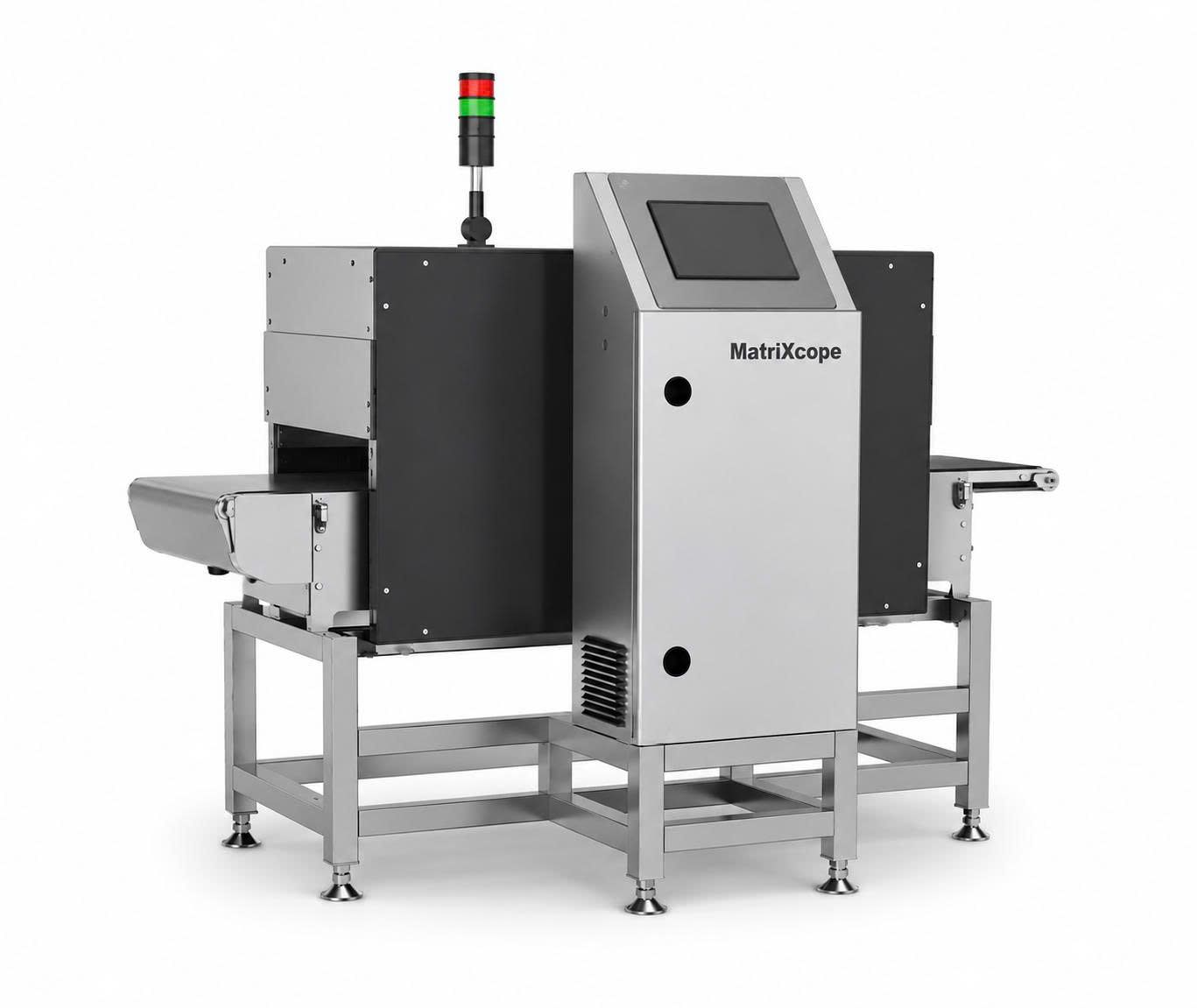

Vision Inspection Machine MatriXcope MTC-AV5400XPRO
Upgrade your manufacturing process with the MTC-AV5400XPRO Vision Inspection Machine. Utilize AI technology for precise foreign object detection and packaging verification.
Product Documents
Overview of the vision inspection Machine MatriXcope MTC-AV5400XPRO
A single undetected defect whether it is a foreign object in a product or a blurred expiration date on the packaging can lead to costly product recalls and damage your brand’s reputation. To meet the highest standards of safety, modern production lines require more than manual quality checks. Enter the MTC-AV5400XPRO Vision Inspection Machine. By leveraging intelligent AI technology to learn from standard product samples, this system completely automates your quality control, ensuring every product leaving your facility is flawless and perfectly packaged.
Key features of the vision inspection Machine MatriXcope MTC-AV5400XPRO.
- Detect hair, black spots, foreign materials, insects, plastic, and any abnormal color variations on unpackaged
Inspect for missing seasoning sachets, broken or incomplete products.
- Verify expiration dates on packaging, including blurred, incorrect, or missing printing.
- Detect unsealed or improperly sealed Verify that the printed packaging design matches the approved reference sample.
Inspection Principle:
The system is capable of detecting any deviation from the standard product sample that it has been trained to recognize, enabling AI-based anomaly detection without requiring predefined rules for every possible defect.
Integrating the MTC-AV5400XPRO into your line ensures a smarter, safer, and more reliable quality control process.
|
Application |
Product Appearance Defects | Surface Flaws & Foreign Object Detection | OCR Label Inspection |
|
Performance |
Detection Accuracy： 0.5 mm
Detection Rate： 99.9 % False Detection Rate：0.1 % |
| Camera | Area-Scan Sensor x 5; 2K Line-Scan Sensor x 2, 2 line camera it support adjust the lens. |

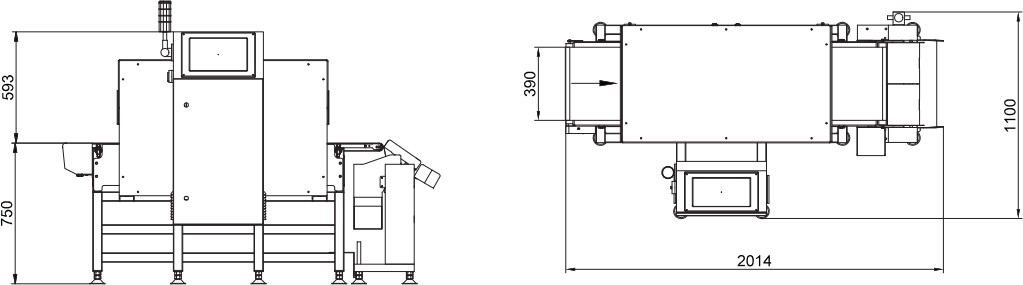

| Conveyor width | 400mm (can be customized) |
| Inspection Height | 150mm (can be customized) |
| Conveyor Height | 750+100mm |
| Working Direction | From left to right |
| Typical Applications | Product Appearance Defects | Surface Flaws & Foreign Object Detection | OCR Label Inspection |
| Lens | High-definition Fixed-focus Lens |
| Light Source | RGB, White, or Infrared (IR) (optional) |
| Light Controller | 4-Channel Digital Light Controller |
| Speed | 10-80m/min |
| Display | TFT 15″ Full-color Touchscreen |
| Processing Unit | Standalone Industrial PC |
| Operating System | Windows 10 |
| Operation Language | Multilingual (English, etc.) |
| Alarm Method | Audible and Visual Alarm |
| Ejection | Air Blast, Swing Arm, Pusher, Knock-Off, Flap, etc. (optional) |
| Data Interface | LAN Port, USB Port |
| Product Management | Complete Product Log |
| Operating Environment | 0-40°C, 30-85% RH, Non-condensing |
| Material | Stainless Steel 304 |
| Power Supply | Single-phase AC, 220V±10%, 50/60Hz |
| Air Supply | Ejector Powered by Buyer-provided Dry Compressed Air (0.6–0.8 MPa) |
