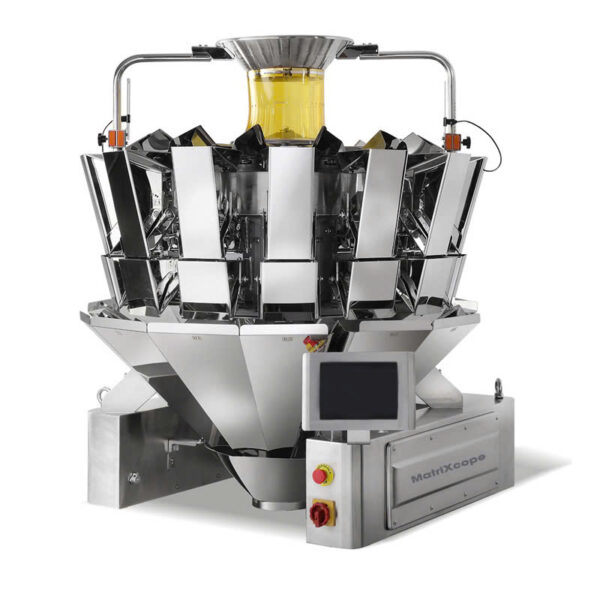

14 Head Computer Weigher MatriXcope MTC-YU-S-NA14-5-0.5L
MatriXcope MTC-YU-S-NA14-5-0.5L 14-head 0.5L high precision electronic scale Used for weighing small hardware and plastic parts.
Product Documents
Downloads
Overview of 14 head computer weigher MatriXcope MTC-YU-S-NA14-5-0.5L
MatriXcope MTC-YU-S-NA14-5-0.5L 14-head 0.5L high precision electronic scale used for weighing small hardware and plastic parts.
Suitable weighing all types of small sized / dosed, granular products, such as herbal medicine pieces, pistachios, candy, coffee beans, chocolate beans, etc.
Technical specifications 14 head computer weigher MatriXcope MTC-YU-S-NA14-5-0.5L
|
PHYSICAL SPECIFICATIONS |
|
| Hopper Volume | 0.5L |
| Weighing Range(1 hopper) | 5-200g |
| Accuracy | ±0.1g |
| Min Scale Interval | 0.1g |
| Max Weighing Speed | 120p/M |
| Control System | MCU/Siemens PLC |
| HMI | 7”/10” Control Screen |
| Power Supply | 220V, 50/60Hz |
| Packing Diamension | 1,370(L)*1,060(W)*1105(H)mm |
| Gross Weight | 240kg |
Outstanding features of 14 head computer weigher MatriXcope MTC-YU-S-NA14-5-0.5L
- Special load cell with high precision and high standard.
- IP65 water prove, easy cleaning and maintenance with clean function, all hoppers can stay open.
- Program recovery function can reduce operation failures, Support multi-segment weight calibration.
- Material contacting parts added anti-noise PVC.
- Step motor angle can be set according to different product.
- 99 programs capacity can meet various weighing requirement, user-friendly help menu in touch screen contributes to easy operation.
- Modular electronic system makes function expanding and maintenance easier and at lowest cost.
- Professiona A/D card with high accuracy and stability. Interchange is available.
- HMI program with different authority management, can be upgraded by U-disk.
This product is developed by MatriXcope (USA) – a leading global provider of automatic weighing and inspection systems.
For more information, please visit the official website: https://matrixcope.com
Technical specifications 14 head computer weigher MatriXcope MTC-YU-S-NA14-5-0.5L
|
PHYSICAL SPECIFICATIONS |
|
| Hopper Volume | 0.5L |
| Weighing Range(1 hopper) | 5-200g |
| Accuracy | ±0.1g |
| Min Scale Interval | 0.1g |
| Max Weighing Speed | 120p/M |
| Control System | MCU/Siemens PLC |
| HMI | 7”/10” Control Screen |
| Power Supply | 220V, 50/60Hz |
| Packing Diamension | 1,370(L)*1,060(W)*1105(H)mm |
| Gross Weight | 240kg |
