X-ray Baggage scanner MatriXcope MTC-XR64PRO
The MatriXcope MTC-XR64PRO luggage X-ray scanner utilizes an advanced X-ray imaging system, integrating semiconductor detectors, digital image processing technology, and computer image display technology.
Product Documents
Downloads
Advantages of the MatriXcope MTC-XR64PRO x-ray baggage scanner
The MatriXcope MTC-XR64PRO luggage X-ray scanner utilizes an advanced X-ray imaging system, integrating semiconductor detectors, digital image processing technology, and computer image display technology.
It provides users with an efficient, reliable, and high-quality image processing system with service functions. The device has a large hard drive capacity, allowing storage of a significant number of high-resolution images. It can identify prohibited items and raise alarms when detecting such items.
- Radiation safe.
- High resolution, high penetration and good image quality.
- Multilingual operation.
- Automatic built in test and self diagnosis.
- Threat alert and material classification.
- Energy saving design.
- One key turn off with patent.
- Drugs and explosives detection.
Contact to order X-ray Baggage scanner MatriXcope MTC-XR64PRO
| Physical specifications | |
| Tunnel size | 613(W)*409.5(H) mm |
| Unit weight | 455 kg |
| Unit size
after packed on wooden pallet – |
2007(L)*844(W)*1234(H) mm |
| Gross weight | 500 kg |
| Packing size | 220*101*156cm |
| General Specifications | |
| Conveyor Speed | 0.4 m/s forward or backward |
| Conveyor height | 663.5 mm |
| Conveyor capacity | 150 kg |
| Frame design | 304 stainless steel, 2-5 mm cold rolled plate and square steel, double-layer staggered lead impregnated safety curtain |
| X ray dose/inspection | ≤4μSv |
| X ray leakage | ≤1μSv/h at any point 5 cm outside the external surface. FDA standard is ≤5μSv/h |
| Steel penetration | 39 mm guaranteed |
| Wire Resolution | AWG40 guaranteed |
| Penetration Resolution | AWG34 guaranteed |
| Spatial resolution | 1.0mm Horizontal, 1.0mm Vertical |
| Power Consumption | max. 0.8KW |
| Noise | <60 dB |
| Film Safety | Guarantee ASA/ISO1600 Film |
| X-ray Generator (single) | |
| Anode Voltage | 140 KV |
| Beam direction | Upword |
| Cooling / Duty Cycle | Sealed oil cooling /100% |
| Computer and other | |
| Ops temperature/Humidity | 5oC-40oC
0%-90%(non-condensing) |
| Storage Temperature
/Humidity |
-20oC to 60oC
10%-90%(non-condensing) |
| Operation Power | 220V(+10% ~ -15%) 50±3Hz
Options: 110-120V, 230-240V, 60Hz |
| Computer and other | |
| Monitor | One 21.5-inch LCD monitor, 1920*1080 |
| Console | None |
| CPU | Intel (R) i3 (R) 3.3GHz |
| RAM | 4GB |
| Hard Disk | 1T |
| Platform | Windows 10 |
| Electric roller | Three-phase |
| Imaging System | |
| Detector | 1152 channels in an L-Shaped Array |
| Image processing | Color / black and white imaging, local enhancement, high penetration, low penetration, super enhancement, organic stripping, inorganic stripping, reverse color, brightening, darkening, gray level scan/variable density, continuously zoom maximum 64x, pseudo color imaging, organics enhancement, suspicious item alarm and notation, edge enhancement imaging, etc. |
| Explosives & Narcotics Detection | Suspicious organics highlight(atomic number Zeff=7,8,9) |
| Suspecious Alarm | Alarm and box line the suspicious objects including hard to penetrate material, explosives and drugs |
| Threat Image Projection(TIP) | Inserting fictional, but realistic images of threat items into baggage during screening operation, for maintenance of vigilance, as well as training and assessment of image identification capability |
| Image pullback | 30 images |
| Image Archive | Up to 50,000 images stored automatically, enable transferring to USB disk, and converting to JPG, BMP and other formats |
| Miscellaneous Functions | Time/date display, counters, user management, system-on/x-ray-on timers, power on self test, built-in diagnostic facilities, bidirection scanning, forced scanning, image search and export, system setting, system log, system standby and stimulant training,etc. |
| Options | UPS, additional roller, remote work station, network integration, video monitoring, etc. |
Related products
The MatriXcope MTC-76XPRO is a state-of-the-art X-ray inspection system designed specifically for detecting fish bones and metallic contaminants in processed fish meat.

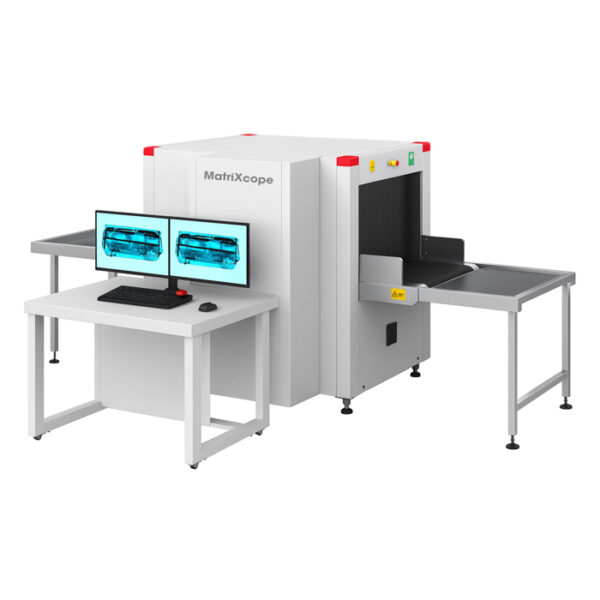

MatriXcope MTC-XR65D X-ray baggage scanner is a new type of security inspection equipment that uses X-rays to penetrate and inspect luggage, goods, and parcels without needing to check packaging
