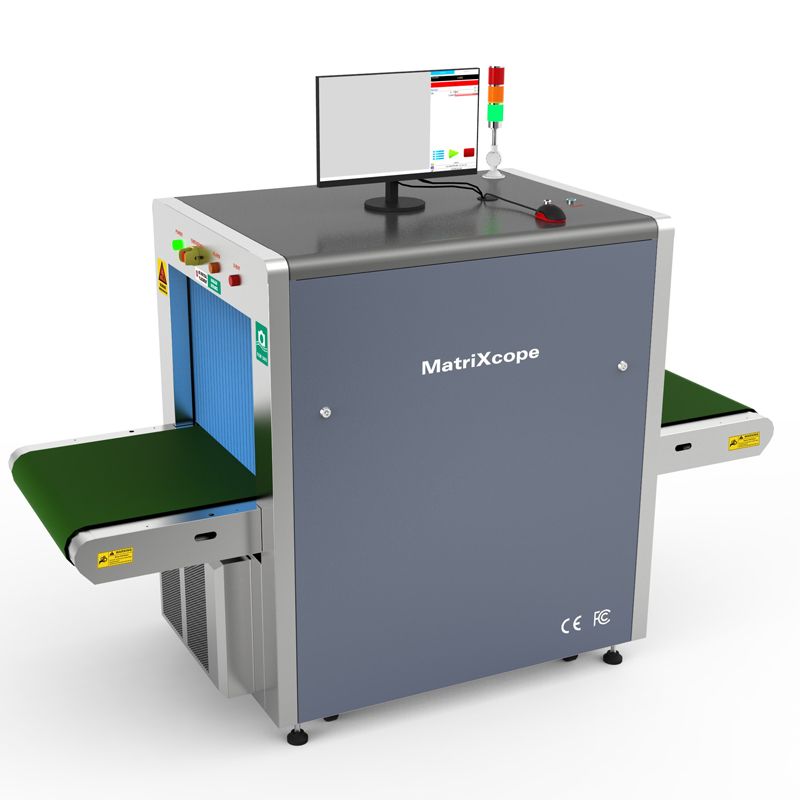

Overview of X-Ray Inspection System for Large Packages MatriXcope MTC-75XPRO
The MatriXcope MTC-75XPRO X-Ray Inspection System for Large Packages is designed for manufacturers that need to inspect large cartons, boxes, bags, and bulk packages for foreign contaminants before storage, shipment, or final delivery.
With a large inspection tunnel and high-performance X-ray technology, the MTC-75XPRO can detect both metal and non-metal contaminants, even when products contain metal accessories or are packed in aluminum packaging. This makes it suitable for industries such as garments, footwear, handbags, food, and agricultural products.
Key Features
Large Package Inspection
The MTC-75XPRO is specially designed for inspecting bulky and large packages, including cartons, boxes, and bags.
The system supports cartons up to 1000 × 650 × 500 mm (L × W × H) and a belt load of up to 30 kg, depending on the product and inspection conditions
Detect Metal and Non-Metal Contaminants
Unlike conventional metal detection methods, X-ray inspection can be used to identify different types of high-density foreign contaminants inside packaged products.
According to the manufacturer’s specifications, the MTC-75XPRO offers detection performance down to:
- SUS304 stainless steel ball: Ø0.5 mm
- Ceramic ball: Ø0.8 mm
- Glass: Ø1.5 mm
Actual detection performance may vary depending on the product density, contaminant shape and position, packaging material, conveyor speed, and operating conditions. Catalog High Definition X-Ray S…
Designed for Products with Metal Accessories and Aluminum Packaging
One of the key advantages of the MTC-75XPRO is its ability to inspect products that contain metal accessories or are packaged in aluminum.
This makes the system particularly suitable for applications where conventional metal detectors may face limitations, such as garments with buttons or zippers, footwear and handbags with metal accessories, or products packed in aluminum materials.
Applications
The MTC-75XPRO can be integrated into quality control processes across multiple industries, including:
- Garment & Textile: packaged clothing and textile products
- Footwear: shoes and finished footwear packed in cartons
- Handbags & Luggage: products containing zippers, buckles, and other metal accessories
- Food Processing: large bags, cartons, and bulk packaged food
- Agricultural Products: grains, seeds, nuts, and other bulk products
- Other Large-Packaged Products: applications requiring inspection of multiple products or large packages
The catalog also illustrates applications in clothing, bulk materials, food and other product categories.
High-Efficiency X-Ray Inspection
The system adopts a high-speed transmission channel for automatic inspection and is designed to handle multiple products within large cartons or bulk packages simultaneously.
When a contaminant is detected, the system provides sound and light alarms, while the detected point can be displayed on the monitor. Optional reject configurations include NG shutdown and push-rod rejection, which can be customized according to production requirements.
| Parameter | Specification |
|---|---|
| Model | MTC-75XPRO |
| Inspection Technology | X-Ray |
| Tunnel Size | 650 mm (W) × 500 mm (H) |
| Maximum Carton Size | 1000 × 650 × 500 mm (L × W × H) |
| Conveyor Speed | 0.2 m/s |
| Belt Bearing Capacity | 30 kg |
| Detection Accuracy | SUS304 Ø0.5 mm / Ceramic Ø0.8 mm / Glass Ø1.5 mm |
| Parameter Setting | Self-learning / Manual adjustment |
| Product Packaging | Bag or box |
| Alarm | Sound & light alarm with detection points displayed on monitor |
| Optional Reject System | NG shutdown / Push rod / Customized |
| Conveyor Height | 699 mm |
| X-Ray Tube Voltage | 60–120 kV, adjustable |
| X-Ray Tube Current | 0.3–4 mA, adjustable |
| Maximum X-Ray Power | 350 W |
| Cooling | Sealed oil cooling |
| Power Supply | AC 220 V (±10%), 50 Hz ±3 Hz |
| Power Consumption | 1.5 kW |
| Machine Dimensions | 2193 × 902 × 1363 mm |
| Net Weight | 490 kg |
