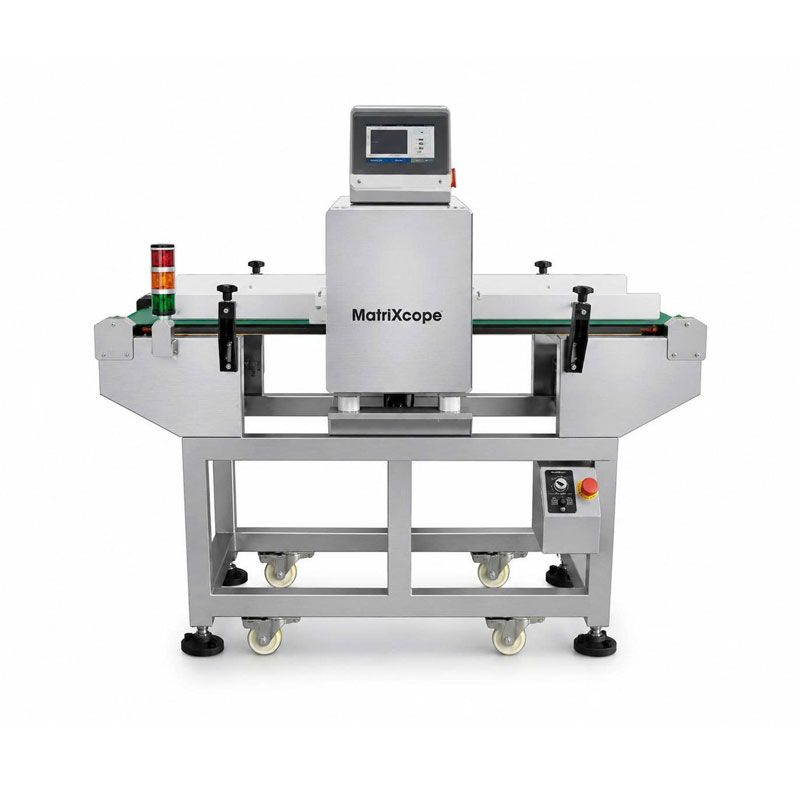

Conveyor Metal Detector MatriXcope MTC-M-Series

The MatriXcope MTC-M-Series Conveyor Metal Detector is designed for reliable in-line inspection in food, pharmaceutical, chemical, cosmetic and packaging production environments.

Installed directly on a conveyor line, the system helps manufacturers identify metal contaminants before products move to the next processing, packaging or distribution stage. It can detect ferrous metals, non-ferrous metals and stainless-steel contaminants with high sensitivity.

With hygienic stainless-steel construction, a user-friendly touchscreen interface and stable inspection performance, the MTC-M-Series provides an effective metal detection solution for modern production facilities.

Overview of MatriXcope MTC-M-Series Conveyor Metal Detector

Metal contamination can enter a product during raw material handling, processing, maintenance, packaging or transportation. Even a small contaminant can affect product quality, damage customer confidence and create additional risks for manufacturers.

The MatriXcope MTC-M-Series is developed to help businesses strengthen their quality control processes through continuous conveyor-based inspection. Products pass through the detection area while moving along the production line, allowing the system to inspect them without interrupting normal operations.

The conveyor metal detector is suitable for a broad range of packaged and unpackaged products, including bagged snacks, meat, seafood, frozen food, grains, flour, powders, bottled beverages, toiletries and other packaged goods.

Key Features of MatriXcope MTC-M-Series

Specifications

Model	MTC-M3010XPRO	MTC-M3015XPRO	MTC-M4010XPRO	MTC-M4015XPRO	MTC-M5015XPRO	MTC-M5020XPRO	MTC-M6020XPRO	MTC-M6030XPRO
Height (mm)	100	150	100	150	150	200	200	300
Width (mm)	300	300	400	400	500	500	600	600
Body Length	1500/1800mm
Working Speed	30m/min(Adjustable)
FE (mm)	0.8	1.0	0.8	1.0	1.0	1.5	1.5	1.5
NFE	1.0	1.2	1.0	1.2	1.2	1.5	2.0	2.0
SUS304	1.5	1.5	1.5	1.5	1.5	2.0	2.5	2.5
Operation	Touch Screen/button
Power Supply	AC220V±10% 50Hz（60Hz）
Alarm	Audible and visual alarm
Rejector	Multi-Rejector Optional
IP Rate	IP54/IP66
Operating Environment	Temperature)：0℃～40℃，Humidity：30%～95%
Main Body Material	SUS304 (Stainless Steel)

*The parameter above reflects the sensitivity of inspecting only the test sample on the belt, which may vary based on the products being inspected

High-Sensitivity Metal Detection

The MTC-M-Series is designed to detect three common categories of metal contaminants:

• Ferrous metals
• Non-ferrous metals
• Stainless steel

This detection capability supports manufacturers in identifying unwanted metal particles that may enter products during processing or packaging.

Reliable In-Line Inspection

The system can be integrated into conveyor-based production lines for continuous product inspection. This allows manufacturers to include metal detection as part of their regular production and quality control processes.

In-line inspection helps reduce dependence on manual checks while supporting consistent monitoring throughout production.

Hygienic SUS304 Stainless-Steel Construction

The main body of the MTC-M-Series is manufactured from SUS304 stainless steel, making it suitable for demanding industrial environments.

The stainless-steel structure provides a clean and durable surface for facilities where hygiene, equipment cleanliness and production reliability are important considerations.

This makes the conveyor metal detector particularly suitable for food processing, pharmaceutical production, cosmetics manufacturing and other industries with strict quality requirements.

User-Friendly Touchscreen Interface

The MatriXcope MTC-M-Series features an intuitive touchscreen interface that allows operators to control and monitor the inspection process conveniently.

A straightforward operating interface can help production teams manage routine inspection tasks more efficiently and reduce the complexity of day-to-day equipment operation.

Stable Inspection Performance

Stable performance is essential for a metal detection system operating continuously on a production line. The MTC-M-Series is designed to deliver reliable inspection results across different industrial applications and production environments.

Its consistent operation helps manufacturers maintain quality control without unnecessarily disrupting production flow.

Supports Quality and Food Safety Programs

The MTC-M-Series supports quality management and food safety programs associated with:

• HACCP
• BRC
• IFS
• FDA requirements

By incorporating an industrial metal detector into the production process, manufacturers can strengthen their contamination control procedures and demonstrate greater attention to product safety and quality assurance.

Applications of the MTC-M-Series Metal Detector

The MatriXcope MTC-M-Series can be used across multiple industries where metal contamination control is required.

Food Processing

The system is suitable for inspecting a wide variety of food products, including:

• Bagged snacks
• Grains and rice
• Flour and powdered products
• Meat and seafood
• Frozen food
• Bottled beverages
• Packaged food products

A conveyor metal detector can be positioned at an appropriate stage of the production line to inspect products before final packing, storage or distribution.

Pharmaceutical Production

Pharmaceutical manufacturers can use the MTC-M-Series to support in-line inspection and reduce the risk of metal contamination during production and packaging.

Its hygienic stainless-steel structure and user-friendly operation make it suitable for controlled manufacturing environments where consistency and product quality are critical.

Chemical Industry

Powders, granules and packaged chemical products may be exposed to metal contamination during processing, material handling or packaging.

The MTC-M-Series provides a practical inspection solution for chemical production lines that require stable, continuous metal detection.

Cosmetics and Personal Care Products

The conveyor metal detector can also be used for cosmetics, toiletries and personal care products.

It helps manufacturers inspect products as they move through the production or packaging line, supporting quality control before products are released for distribution.

Packaging Operations

Packaging facilities handling different types of consumer and industrial products can integrate the MTC-M-Series into their conveyor systems.

The equipment is suitable for inspecting packaged products before they enter cartons, warehouses or distribution channels.

How the MTC-M-Series Supports Product Quality

Metal contamination can result in rejected products, customer complaints and damage to brand reputation. A reliable inspection process helps manufacturers detect contamination before affected products leave the facility.

The MatriXcope MTC-M-Series supports product quality by:

• Inspecting products continuously on the conveyor line
• Detecting ferrous, non-ferrous and stainless-steel contaminants
• Supporting consistent contamination control
• Reducing dependence on manual inspection
• Strengthening food safety and quality assurance procedures
• Helping protect customers and brand reputation

By identifying metal contaminants during production, manufacturers can take corrective action before products reach the market.

Why Choose MatriXcope MTC-M-Series?

The MatriXcope MTC-M-Series combines reliable metal detection with a design suitable for demanding production environments.

Key reasons to choose the system include:

• High-sensitivity detection of common metal contaminants
• Detection of ferrous, non-ferrous and stainless steel
• Continuous in-line inspection
• Hygienic SUS304 stainless-steel construction
• User-friendly touchscreen operation
• Stable and reliable inspection performance
• Suitability for multiple industries
• Support for HACCP, BRC, IFS and FDA compliance programs
• Protection of product quality and brand reputation

The system is a versatile solution for manufacturers seeking to improve contamination control without adding unnecessary complexity to their production lines.

Improve In-Line Quality Control with MatriXcope

The MatriXcope MTC-M-Series Conveyor Metal Detector provides a reliable solution for detecting metal contaminants in food, pharmaceutical, chemical, cosmetic and packaging applications.

Its high-sensitivity detection capability, stainless-steel construction and convenient touchscreen interface make it suitable for manufacturers that require stable inspection performance and consistent product quality.

Request a Quote

Contact MatriXcope to learn more about the MTC-M-Series and select a conveyor metal detector configuration suitable for your products, packaging and production environment.
