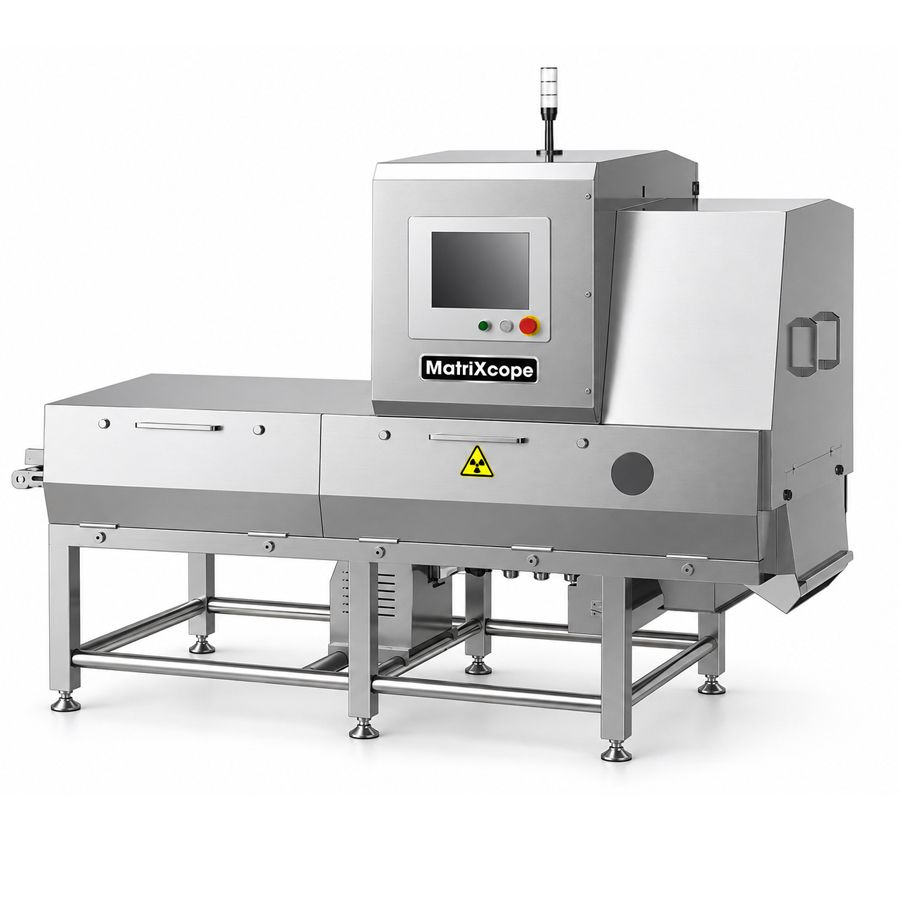

Combo X-Ray Visual Inspection System MatriXcope MTC-8800XPRO

X-ray + Color Vision AI — All-in-One Quality Inspection System

The MatriXcope MTC-8800XPRO Combo X-ray Visual Inspection System is an advanced multi-technology inspection and sorting solution designed for food and agricultural processing applications.

By integrating X-ray imaging, RGB Color Vision, and intelligent recognition algorithms into a single platform, the system can inspect product density, color, shape, size, surface condition, and material characteristics in one continuous process. This enables manufacturers to detect foreign materials, identify product defects, and automatically sort non-conforming products with high efficiency.

All-in-One Quality Control

Unlike conventional inspection systems that focus on only one type of quality issue, the MTC-8800XPRO combines multiple inspection technologies to provide comprehensive internal and external quality control.

The system integrates:

X-ray Inspection – analyzes internal structure and density differences to detect high-density contaminants and selected internal abnormalities.

RGB Color Vision – evaluates product color, shape, size, and visible surface conditions.

Intelligent Recognition – analyzes inspection data to identify complex defects and product abnormalities.

Together, these technologies provide an integrated solution for food safety, foreign material detection, defect inspection, and quality sorting.

Foreign Material Detection

The MTC-8800XPRO is designed to detect a wide range of foreign materials in food and agricultural products.

Under no-product test conditions, the system provides inspection capabilities including:

• SUS304 ball: 0.2 mm
• SUS wire: 0.2 × 2 mm
• Glass ball: 0.8 mm
• Ceramic: 0.8 mm
• Black hair: 3 mm long
• Colored glove fragments: 3 × 3 × 3 mm
• Colored nylon thread: 3 mm long
• Plastic fragments: 3 × 3 × 3 mm

The catalog also specifies recognition of mouse droppings and insects/pests. Actual detection performance depends on the product and operating conditions.

Key Benefits

Multi-Technology Inspection
Combines X-ray, RGB Color Vision, and intelligent recognition in one system.

Internal + External Inspection
Inspects both internal density characteristics and external product appearance.

Foreign Material Detection
Detects metal, glass, ceramic and selected low-density or visually distinguishable foreign materials.

Product Defect Inspection
Identifies color, shape, surface, structural, and selected internal abnormalities.

Automatic Quality Sorting
Automatically separates defective or non-conforming products from acceptable products.

Precision Rejection
64-channel air-jet rejection targets detected contaminants or defects to minimize unnecessary product loss.

Production Data Management
Supports product logs, automatic image saving, image analysis, auto-learning, and manual parameter settings.
