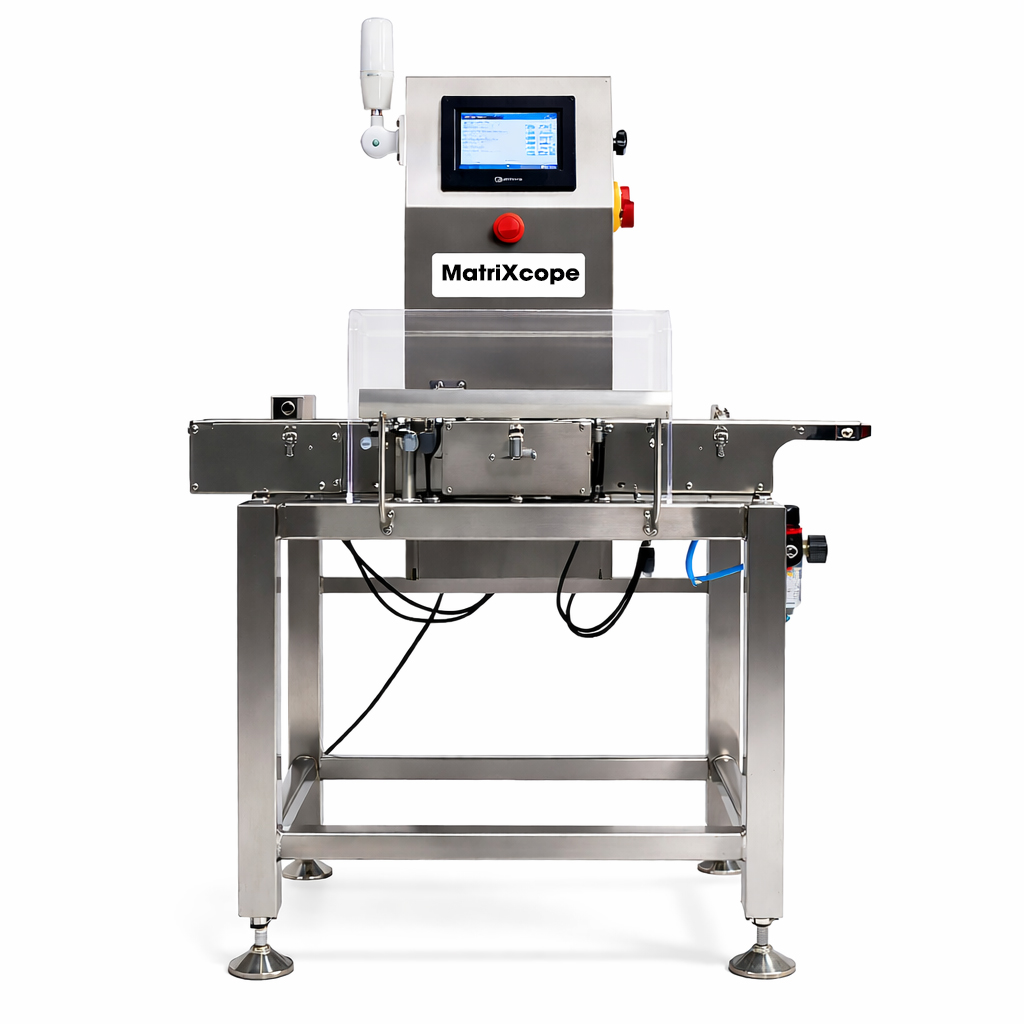

Overview of checkweigher auto weighing machine Matrixcope MTC-CW200-200G
The MTC-CW200-200G is a high-speed dynamic checkweigher designed for automatic weight inspection on production lines. It is suitable for food, seafood, pharmaceutical, and packaging industries where precise weight control is critical.
It supports real-time weight verification, automatic rejection (air blow), production data reporting, and communication with other packaging equipment.
Key Specifications of MTC-CW200-200G
| Power supply | AC220V, 50HZ |
| Rated power | 0.1KW |
| Single weighing range | ≤200g |
| Weighing accuracy range | ±0.2~±1g |
| Minimum scale | 0.01g |
| Transfer speed | 30～ 80m/min |
| Max speed | 180 pcs/min |
| Weighing material size | ≤180mm（L） *150mm（W） |
| Weighing conveyor belt size |
300mm（L） *150mm（W） |
| Belt height from ground | 700+100mm |
| Machine Size | 950mm（L） *580mm（W） *1260mm（H） |
| Elimination method | Air blow |
| Control System | High speed A/D sampling controll |
| Preset product number | 2000pcs |
| Operation direction | left to right |
| External air supply | 0.6-1Mpa |
| Barometric interface | Φ8mm |
| Working environment | Temperature： 0℃～ 40℃， Humidity： 30%～ 95% |
| Machine material | Stainless steel 304 polishing treatment |
| Operation screen display | English |
| Other standard equipment | Windshield (colorless and transparent), calibration weight |
| Remarks | The accuracy of the detection speed meter is slightly different depending on the size of the product being tested and the working environment in which the equipment is operated. |
Ideal for Use In:
- Food and beverage processing lines
- Pharmaceutical production
- Consumer goods and packaging industries
- Any manufacturing environment requiring precise, high-speed weight control
Matrixcope MTC-CW200-200G – The smart choice for businesses aiming to enhance quality assurance and production efficiency!
Contact Us Today to Upgrade Your Production Line
With the MTC-CW200-200G Auto Weighing Machine, Matrixcope delivers a robust, intelligent solution for real-time weight checking—ensuring accuracy, efficiency, and compliance with international standards.
Discover more cutting-edge solutions at:
https://matrixcope.com/
| Power supply | AC220V, 50HZ |
| Rated power | 0.1KW |
| Single weighing range | ≤200g |
| Weighing accuracy range | ±0.2~±1g |
| Minimum scale | 0.01g |
| Transfer speed | 30～ 80m/min |
| Max speed | 180 pcs/min |
| Weighing material size | ≤180mm（L） *150mm（W） |
| Weighing conveyor belt size |
300mm（L） *150mm（W） |
| Belt height from ground | 700+100mm |
| Machine Size | 950mm（L） *580mm（W） *1260mm（H） |
| Elimination method | Air blow |
| Control System | High speed A/D sampling controll |
| Preset product number | 2000pcs |
| Operation direction | left to right |
| External air supply | 0.6-1Mpa |
| Barometric interface | Φ8mm |
| Working environment | Temperature： 0℃～ 40℃， Humidity： 30%～ 95% |
| Machine material | Stainless steel 304 polishing treatment |
| Operation screen display | English |
| Other standard equipment | Windshield (colorless and transparent), calibration weight |
| Remarks | The accuracy of the detection speed meter is slightly different depending on the size of the product being tested and the working environment in which the equipment is operated. |
