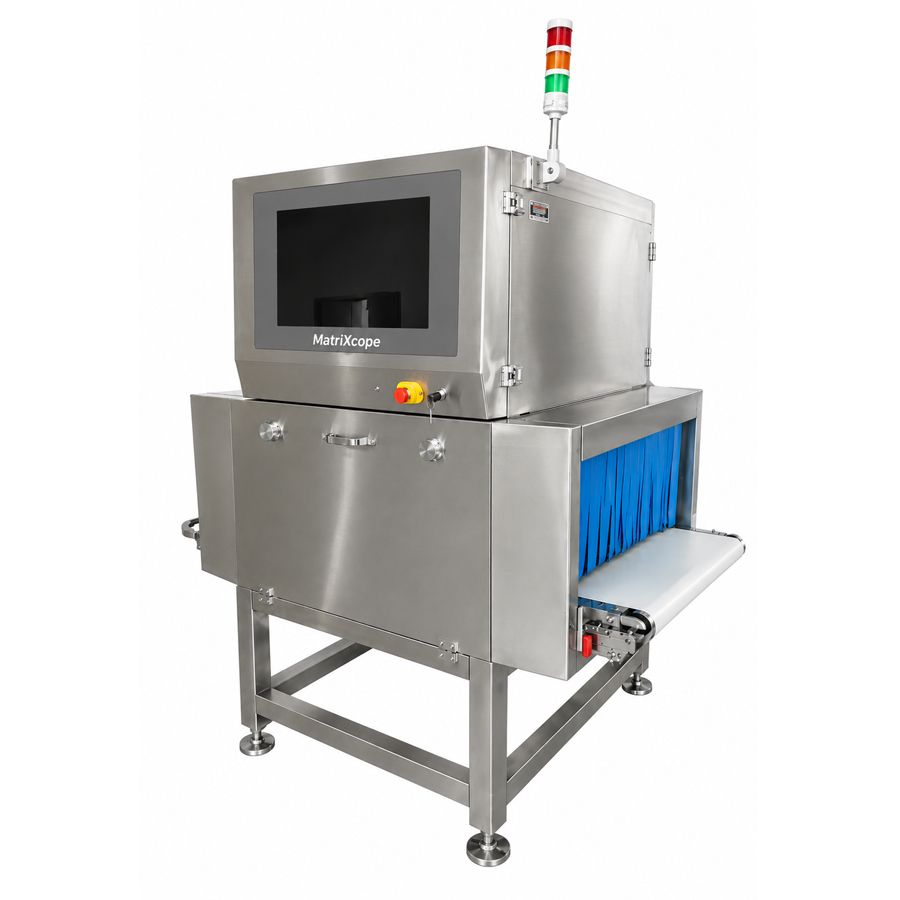

Overview of X-Ray Inspection System MatriXcope MTC-66XPRO
The MatriXcope MTC-66XPRO is an advanced AI-powered X-ray inspection system specifically designed for detecting foreign contaminants in large cartons, bulk materials, sacks, and oversized packaged products. Utilizing high-performance X-ray imaging technology combined with intelligent detection algorithms, the system identifies both metallic and non-metallic contaminants with exceptional accuracy.
The MTC-66XPRO is widely used in the food, seafood, agricultural, garment, footwear, textile, and export manufacturing industries where product safety, quality assurance, and compliance with international standards are critical.
Key features of MatriXcope MTC-66XPRO
The system is capable of detecting a wide range of contaminants, including:
- Ferrous and non-ferrous metals
- Stainless steel
- Glass
- Ceramic
- Stones
- Bones
- Hard plastics
- Other high-density foreign materials
Advanced AI algorithms help improve detection accuracy while reducing false rejects.
Designed for Large Products and Cartons
The MTC-66XPRO is specifically engineered for inspecting large packages and cartons.
Maximum product dimensions:
- 900 × 601 × 160 mm
- 900 × 397 × 340 mm
Ideal for:
- Export cartons
- Agricultural sacks
- Bulk food packaging
- Multipack products
- Large industrial packages
Ideal for Aluminum-Packaged Products
Unlike conventional metal detectors, the MTC-66XPRO can effectively inspect:
- Aluminum foil packaging
- Metalized film packaging
- Aluminum pouches
- Products containing metal accessories
This makes it particularly suitable for products where traditional metal detection systems are ineffective.
Smart Factory Connectivity
The system supports:
- Ethernet communication
- USB data transfer
- MES integration
- Quality control reporting
- Production data management
Allowing seamless integration into modern manufacturing environments.
Why Choose MatriXcope MTC-66XPRO?
- Detects both metallic and non-metallic contaminants
- High sensitivity down to 0.2 mm
- Suitable for large cartons and bulk products
- Effective for aluminum-packaged products
- AI-powered intelligent inspection
- MES-ready for Industry 4.0 integration
- SUS304 hygienic stainless-steel construction
- Meets international quality control requirements
- Helps reduce recalls, customer complaints, and export rejections
| Tunnel width | 600mm |
| Tunnel Height | 500mm |
| Machine Size | LxWxH: 2740x1490x2000mm |
| Machine Weight | 500kg |
| Material | SUS304 |
| Material | Food grade PU |
| Belt width | 600mm |
| Height to ground | 850±50mm |
| Speed | 10~40m/min |
| Weighing Range | 50kg |
| Voltage | 120kv |
| X -ray current | 200-5000μA |
| X -ray power | 500W |
| Detector | 0.2mm |
| Fe/SUS etc. metal ball（Φ） | 0.2mm |
| Fe/SUS etc. metal ball strip | 0.1x2mm |
| Glass ball（Φ） | 0.4 mm |
| Ceramic ball（Φ） | 0.4 mm |
| Fish bone（Φ） | 0.2 mm |
| Algorithm support | Foreign body detection |
| Protection level | Transmission part： IP66 |
| Other areas ：IP54 | |
| Tested product form | Packaging, bulk materials |
| Rejection | Stop and alarm |
| Alarm | Ring and light |
| Display | 21.5 touch screen |
| Cooling method | Industrial air conditioner |
| Protection method | 4 layers of protective curtains |
| Radiation safety | ≤1μSv/h |
| Voltage | AC110V/220V-240V,50/60HZ 1phase AC400V, 3 phase |
| Temperature | -10~40℃ |
| Working humidity | 30~90%RH |
| Included interfaces | Ethernet, USB; support MES docking |
