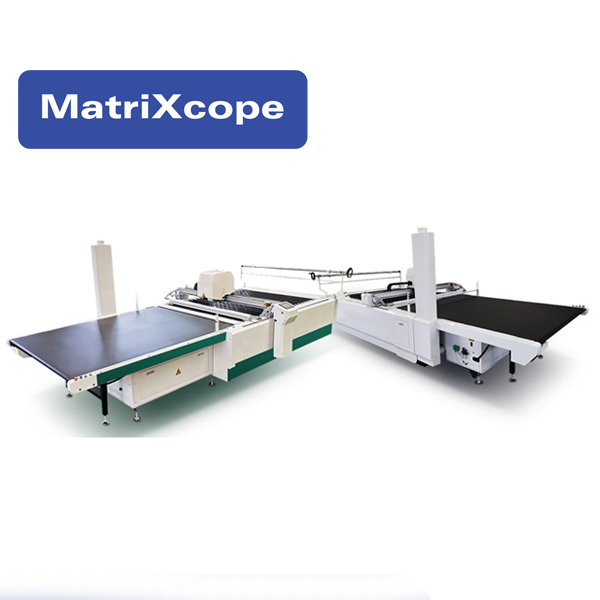

Overview of Matrixcope CNC Multi-Layer Cutting Machine
- The pieces cut out by the equipment have high precision, and the lathe workers can sew directly without trimming the pieces, which effectively improves the sewing efficiency of the lathe workers;
- The equipment can realize zero-distance cutting and effectively save raw materials;
- Computer-controlled automatic cutting, no need for paper prints, instead of a large number of cutting workers, to achieve mass production.
Application
Practical application: in the garment industry, most of the jacket cutting is not symmetrical, so the folding process re-quires the use of cutting and folding, and the curtain process in the home textile industry, also requires the same side up, these processes must require the use of cutting mode.

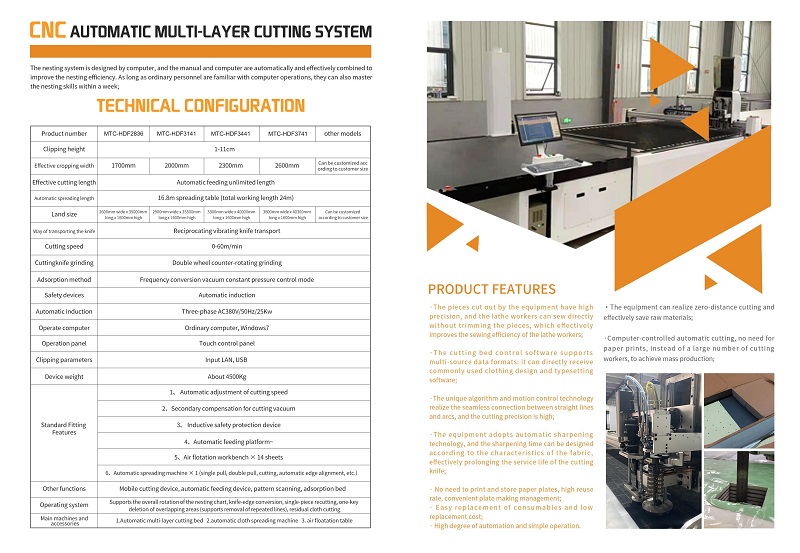

| Parameter | MTC-HDF2836 | MTC-HDF3141 | MTC-HDF3441 | MTC-HDF3741 | Other Models |
|---|---|---|---|---|---|
| Clipping height | 1–11 cm | ||||
| Effective cropping width | 1700 mm | 2000 mm | 2300 mm | 2600 mm | Can be customized according to customer size |
| Effective cutting length | Automatic feeding, unlimited length | ||||
| Automatic spreading length | 16.8 m spreading table (total working length 24 m) | ||||
| Land size | 2600 mm wide × 3500 mm long × 1600 mm high | 2800 mm wide × 3500 mm long × 1600 mm high | 3300 mm wide × 4000 mm long × 1600 mm high | 3600 mm wide × 4200 mm long × 1600 mm high | Can be customized |
| Way of transporting the knife | Reciprocating vibrating knife transport | ||||
| Cutting speed | 0–60 m/min | ||||
| Cutting knife grinding | Double wheel counter-rotating grinding | ||||
| Adsorption method | Frequency conversion vacuum constant pressure control mode | ||||
| Safety devices | Automatic induction | ||||
| Automatic induction | Three-phase AC380V/50Hz/25Kw | ||||
| Operate computer | Ordinary computer, Windows 7 | ||||
| Operation panel | Touch control panel | ||||
| Clipping parameters | Input LAN, USB | ||||
| Device weight | About 4500 kg | ||||
| Standard fitting features |
1. Automatic adjustment of cutting speed 2. Secondary compensation for cutting vacuum 3. Inductive safety protection device 4. Automatic feeding platform 5. Air flotation workbench ×14 sheets 6. Automatic spreading machine ×1 (single pull, double pull, cutting, automatic edge alignment, etc.) |
||||
| Other functions | Mobile cutting device, automatic feeding device, pattern scanning, adsorption bed | ||||
| Operating system | Supports nesting chart rotation, knife-edge conversion, single-piece recutting, one-key deletion of overlapping areas; repeated lines removal; residual cloth cutting | ||||
| Main machines & accessories | 1. Automatic multi-layer cutting bed 2. Automatic cloth spreading machine 3. Air flotation table | ||||
