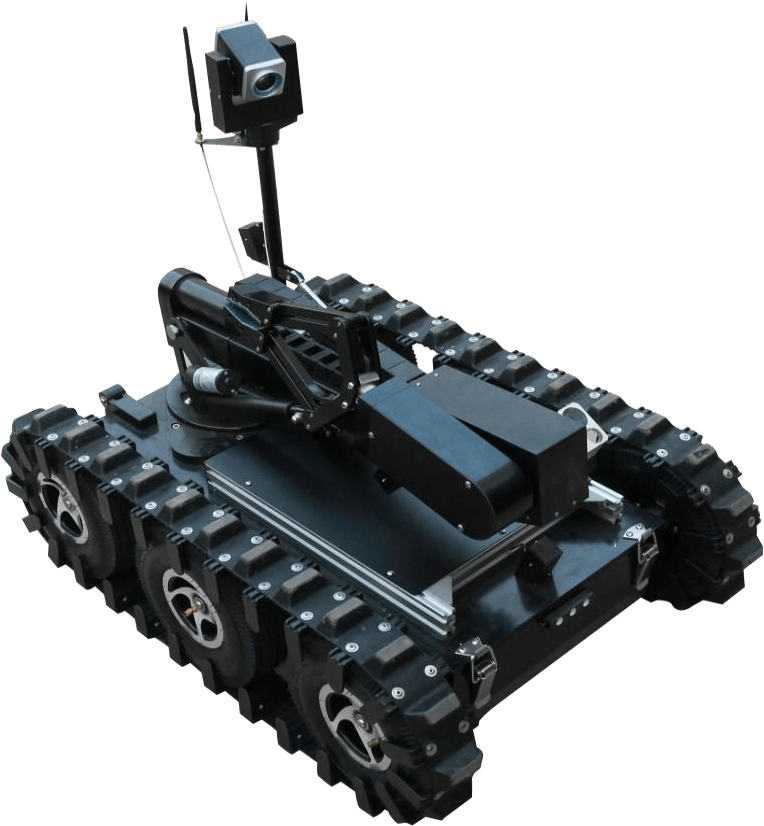

EOD Robot MatriXcope MTC-RB8500XPRO
The MatriXcope MTC-RB8500XPRO Explosive Ordnance Disposal (EOD) robot is engineered to act as the first line of defense for security forces, first responders, and industrial hazardous material teams.
Product Documents
Downloads
The MatriXcope MTC-RB8500XPRO EOD Robot
In high-stakes environments, precision and safety are non-negotiable. The MatriXcope MTC-RB8500XPRO Explosive Ordnance Disposal (EOD) robot is engineered to act as the first line of defense for security forces, first responders, and industrial hazardous material teams. By replacing human presence in high-risk zones, this advanced unmanned ground vehicle (UGV) ensures critical missions are completed safely and efficiently.
Versatile Mission Readiness
The MTC-RB8500XPRO is designed for rapid deployment across a wide spectrum of critical scenarios:
-
Public Safety & Counter-Terrorism: Efficiently isolating and transferring suspicious objects in crowded public transport hubs, airports, and commercial centers.
-
Hazardous Environments: Safely fetching and moving materials within toxic biological zones or high-radiation nuclear environments where human entry is impossible.
-
Disaster Response: Conducting tactical reconnaissance and clearing debris within unstable ruins post-disaster.
Tactical Mobility and Extreme Control
Built to handle unpredictable terrain, the robot features a highly adaptive heavy-duty track and wheel system. It seamlessly conquers steep stairs, high obstacles, and rough debris without losing traction.
Operational command is maintained via a rugged, weatherproof portable control station. Equipped with a multi-angle low-light camera network, operators receive a comprehensive, real-time visual breakdown of the environment. This ensures absolute situational awareness and pinpoint accuracy when manipulating hazardous objects through the multi-axis robotic arm.
Drive Efficiency Forward
Investing in advanced robotics means protecting your most valuable asset: human life. The MTC-RB8500XPRO combines rugged endurance with intelligent handling to redefine tactical field operations.
Discover how to elevate your team’s operational safety. Visit matrixcope.com to explore our complete range of tactical robotic solutions.
| Robot Body | |
| Maximum Speed | 1.0m/s |
| Battery | Rechargeable battery |
| Materials | Aircraft-grade aluminum alloy, precision machining |
| Lift Capability | It can move with clamping weights of 30KG and will not drop (actual measurement). |
| Dimensions | LWH: 920 * 625 * 515 mm |
| Over-obstacle Capacity | It can cross the obstacle of 280mm height. |
| Working Time | ≥3 hours when fully charged (Combined Cycle Conditions) |
| Climbing Stairs Ability | With traction-free assist, it can climb up and down the stairs of 160mm step height and 45° angle slope. |
| Weight | 92.8kg (without accessories, package and control box) |
| Limited Passage Width | ≤700mm |
| Turning Ability | In horizontal cement ground or bituminous pavement, the robot can turn clockwise or anticlockwise 360°. |
| Max. Mechanical Arms Spread | 1650mm |
| Drag Capability | 500N |
| Loading Capacity | When loading 150KG, it can move normally (actual measurement). |
| Grade Ability | It can climb the slope of 45° and stop steadily on the slope. |
| Arm Extension when stretch out and draw back | 500mm |
| Gripper of Manipulator Maximum Expansion Range | 250mm |
| Control Box
|
Via the buttons and handle of control box, the operators can control video switch, zoom, moving, cradle rotating, floodlight, telescopic arm, gripper opening and closing, small arm rotating, big arm lifting, kidney basin rotating, wrist rotating, etc. |
| 6 Mechanical Arm DOFs
|
Manipulator gripper opening and closing Manipulator gripper rotation Small arm rotation Telescopic arm extend and retract Big arm rotation Big arm rise and fall |
| Rotation Angle
|
Manipulator gripper can rotate clockwise and anticlockwise 360º; Small arm can rotate clockwise 150º and anticlockwise 110º; Big arm can pitch angle of 90º; Kidney basin can rotate clockwise 180º and anticlockwise 45º |
| Control Distance | Wireless control: 150 – 800 m (depending on environmental conditions); Wired control: 100m |
| Number of Cameras | 4 |
| Forward Camera | Low-light camera |
| Backward Camera | Low-light camera |
| Cradle Head Various focal Camera | Low-light camera |
| Manipulator Gripper Camera | Low-light camera |
| Floodlight | Two group LED floodlight (one group on the front and back) |
| Monitoring cradle head | |
| DOFs of Cradle Head
|
2 independent DOFs, adjustable rotation speed. Cradle rotation: 360º continuously, maximum rotation speed of 130° per second. Cradle pitching: -45°~ 120°, maximum pitching speed of 50° per second. |
| Control Terminal | |
| Box | Portable, waterproof, dustproof, high strength |
| Size | ≤ L 460 * W 370 *H 260 mm |
| Weight | ≤ 10kg |
| Display Screen | 12-inch HB LCD, wide viewing angle, outdoor clear picture |
| Operation
|
High-quality rocker handle, human software interface design, easy observation and convenient operation |
| Display Image
|
It can monitor 4 video signals simultaneously or separately amplify one of 4 video signals |
| Information Display | Real-time battery status
|
| Battery | Rechargeable 24V lithium battery, working time 3 hours when fully charged. |
Related products

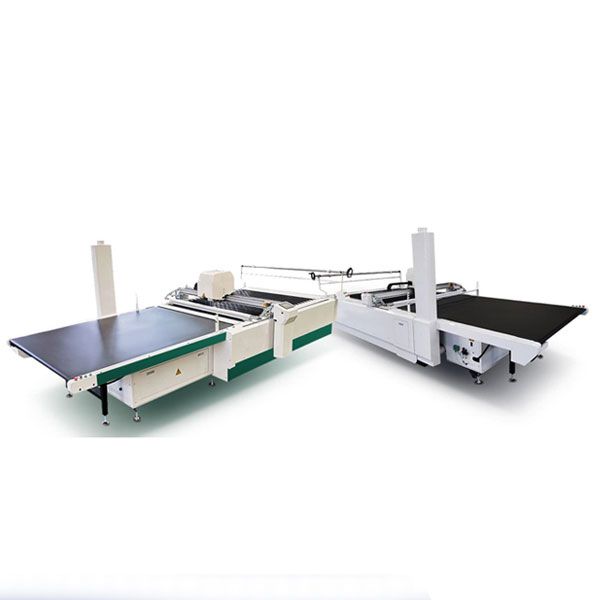

MTC-HDF3441 is a professional-grade automatic cutter engineered for garment factories, upholstery workshops, and industrial textile producers.
