Sauce Metal Detector MatriXcope MTC-MD6000XPRO
MatriXcope MTC-MD6000XPRO Sauce Metal Detector provides high-sensitivity in-line metal detection and automatic rejection for sauces, syrups and liquid or semi-liquid foods.
Product Documents

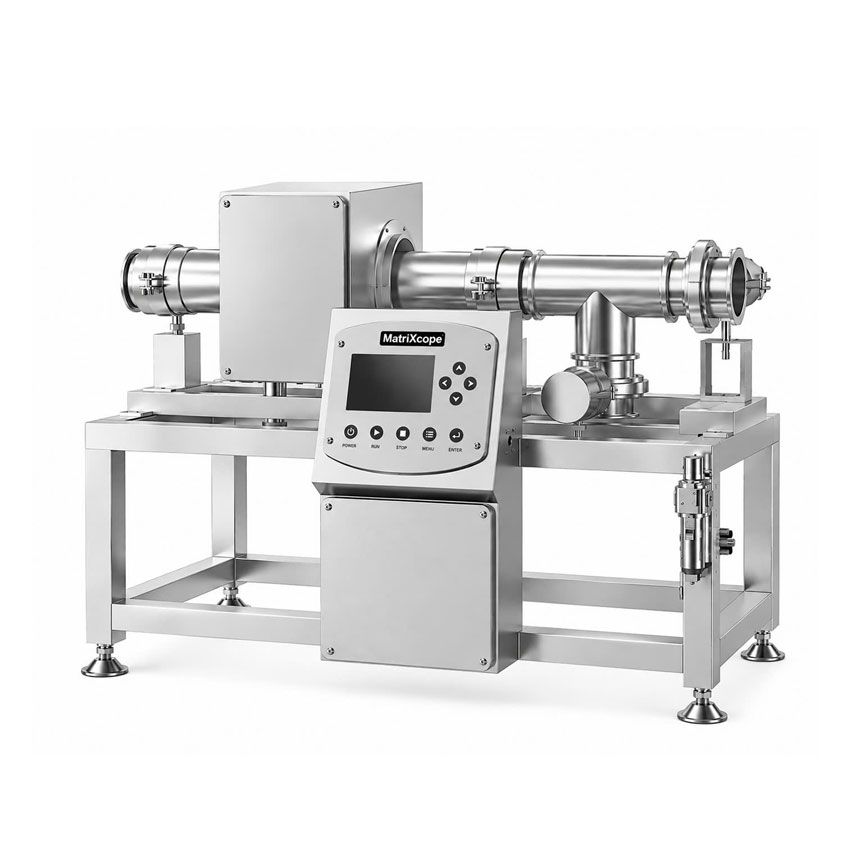

The MatriXcope MTC-MD6000XPRO Sauce Metal Detector is an in-line metal detection system developed for sauces, condiments and other liquid or semi-liquid food products transported through pipelines.
The system detects ferrous, non-ferrous and stainless-steel contaminants and uses an automatic valve rejector to remove contaminated material quickly from the product flow. Its compact structure is designed for convenient installation within food processing lines.
Overview of MatriXcope MTC-MD6000XPRO Sauce Metal Detector
The MTC-MD6000XPRO is designed specifically for metal contamination inspection in pipeline applications. Products flow through the detection section, where the system continuously monitors for metal contaminants.
When metal is detected, the automatic valve rejection mechanism separates the contaminated portion from the production flow. This supports continuous inspection while reducing the risk of contaminated products reaching subsequent processing or packaging stages.
The machine also features a food-grade Teflon inner tube with high-temperature and pressure resistance, supporting operation with different liquid and semi-liquid food products.
Key Features of the MatriXcope MTC-MD6000XPRO Sauce Metal Detector
The MTC-MD6000XPRO combines high detection sensitivity with automatic contaminant rejection. It is designed to identify ferrous, non-ferrous and stainless-steel contaminants in products moving through pipelines.
A fast-clamp connection simplifies installation, disassembly and cleaning. The push-button LCD control panel supports product management, with memory for multiple product recipes, allowing the system to be used across different production requirements.
Its compact structure also helps reduce installation space on processing lines.
Applications of the Sauce Metal Detector
According to the catalog, the MTC-MD6000XPRO is suitable for:
- Sauces and condiments
- Liquid and semi-liquid food products
- Syrups, jams and concentrated products
- Processed foods conveyed through pipelines
- Production lines requiring in-line metal detection and automatic rejection
The system is especially suitable for products that cannot be inspected effectively using a conventional conveyor-type metal detector.
Benefits of MatriXcope MTC-MD6000XPRO Sauce Metal Detector
The system helps food manufacturers improve metal contamination control without interrupting continuous pipeline production. Automatic valve rejection removes contaminated material rapidly while helping minimize unnecessary product loss.
Fast-clamp construction simplifies cleaning and maintenance, while the ability to store multiple product settings helps maintain stable inspection when switching between different recipes.
Why Choose the MatriXcope MTC-MD6000XPRO Sauce Metal Detector?
The MatriXcope MTC-MD6000XPRO Sauce Metal Detector provides an effective solution for metal contamination inspection in sauces, syrups, liquid foods and semi-liquid products.
Its combination of sensitive detection, automatic valve rejection, hygienic pipeline design and convenient cleaning helps manufacturers strengthen food safety while maintaining efficient continuous production.
| Specification | Details |
|---|---|
| Specifications | L63 |
| Detection Diameter | 63mm |
| Detection Sensitivity (without product) | Fe ≥ φ0.6mm SUS304 ≥ φ1.2mm Non-Fe ≥ φ1.0mm |
| Pressure requirements | Automatic Valve Rejector |
| Pipe height | ≥0.5Mpa |
| Operation | 750+100mm (can be customized) |
| Product Memory | Press Button LCD Panel |
| Power Supply | 60 kinds |
| IP Rating | IP67 |
