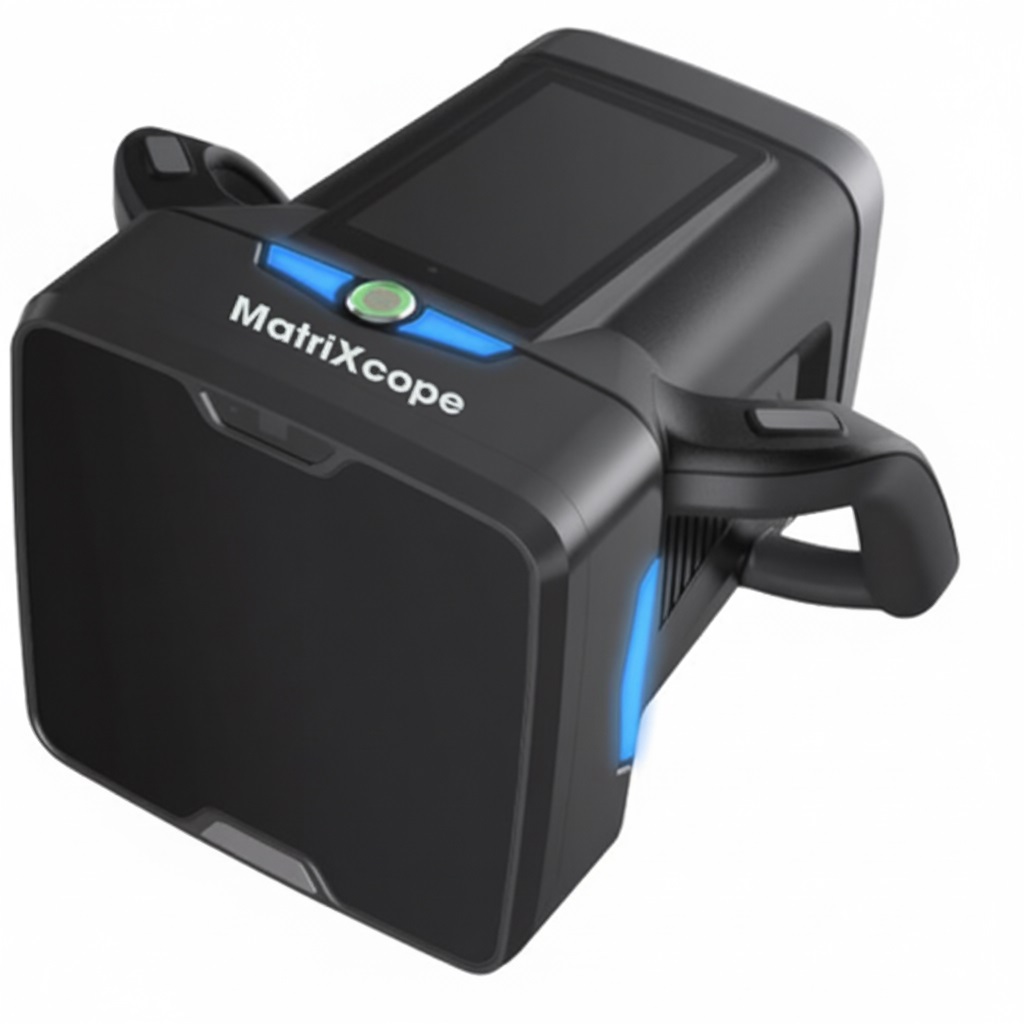

Overview of Handheld Backscatter Inspection System Matrixcope MTC-HBX8200
The MTC-HBX8200 handheld backscatter X-ray imager is a device that uses X-ray backscatter technology to conduct imaging and detection
of the internal structure of the inspected objects. It has strong penetration capabilities and can perform high-sensitivity, rapid, non-destructive imaging and inspection without contact. It can efficiently detect suspicious items such as explosives, drugs, controlled knives, pistols, and
smuggled goods, which are prohibited and dangerous items. With an integrated design, it is easy to carry and can effectively meet the inspection requirements for various tasks such as security checks, bomb detection, drug control, and confidentiality. It can also be widely applied in places such as customs investigation, borders, ports, and important gatherings.
Outstanding advantages of Handheld Backscatter Inspection System Matrixcope MTC-HBX8200
– Effective detection of weapons, IEDs, narcotics, detectaphones and other contrabands behind metal surfaces
– Provides high resolution and real time image.
– Safe for operators, bystanders, and the environment.
– The system’s X-ray dose complies with the ANSI radiation safety standards.
– Integrated design, simple operation and maintenance.
| PHYSICAL SPECIFICATIONS | |
| Scan speed | 150 mm/s |
| Scan time (max) | 20 s |
| Generator voltage | 120 KV |
| Detection capability | IEDs, narcotics, liquids and other light or organic materials. |
| Applications | Boarders, airports, prisons, customs, government facilities, metros, etc. |
| Imaging Processing System | |
| Image acquisition mode
|
Real time |
| Image capability through material
|
≥ 2 mm steel
|
| Image processing functions
|
Image processing functions
|
| Image retrieval
|
Record image recallable
|
| Scanner Dimensions | |
| Scanner Dimensions | 235 mm (D) × 248 mm (W) × 168 mm (H) |
| Weight | 3.8 kg |
| Power Supply Data | |
| Operating temperature | – 20℃ ～+ 50℃ |
| Storage temperature | – 25 ℃ ～ + 60 ℃ |
| Operating humidity | 0% ~ 93% (non-condensing) |
