Overview of Automatic Bollard Matrixscope MTC-D2043

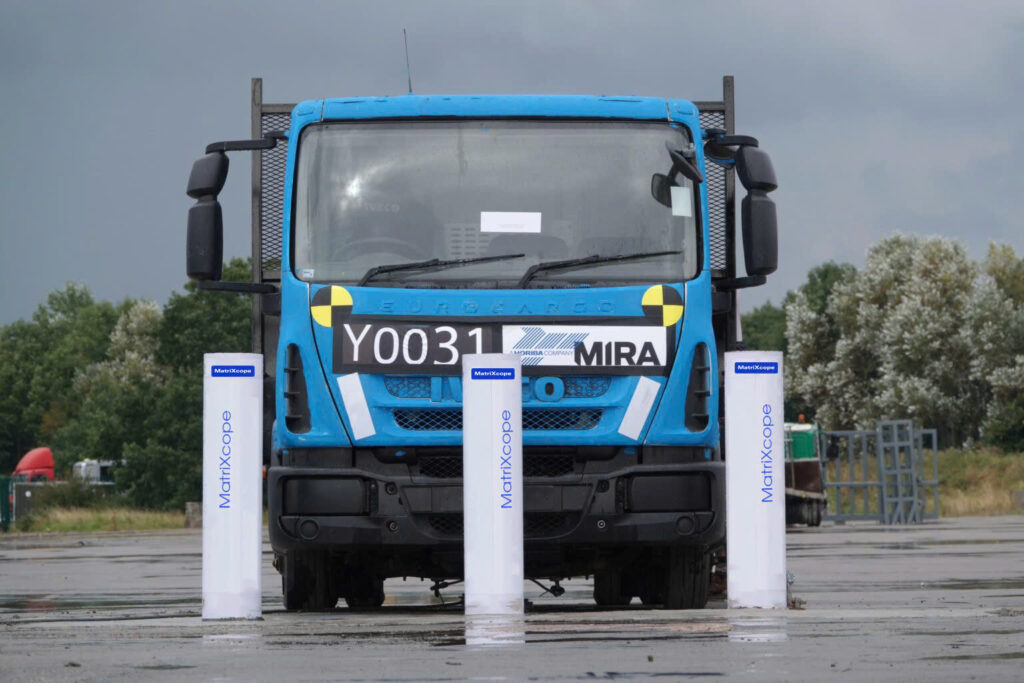

The Matrixcope MTC-D2043 is a premium automatic bollard engineered to deliver robust protection against unauthorized vehicle access and intentional ramming attacks. Successfully tested with 0m static penetration and only 0.8m dynamic penetration, it ensures reliable security in high-risk environments.
Technical specifications of Automatic Bollard Matrixcope MTC-D2043
|
PHYSICAL SPECIFICATIONS |
|
| DRIVE UNIT | HYDRAULIC |
| RATED DIAMETER | 355 MM, 360 MM (WITH SS COVER |
| RATED HEIGHT | 1200 MM |
| CYLINDER MATERIAL | HIGH TENSILE CARBON STEEL |
| PRODUCT RATING (SINGULAR BOLLARD) | IWA 14:2013 BOLLARD V/7200 [N2A] 80/90:0.8 |
| IMPACT LOAD | 7.2 TON @ 80 KMPH WITH 0 M STATIC PENETRATION & 0.8 M DYNAMIC PNENETRATION ( P1) |
| RATED IMPACT ENERGY | 1756 KJ |
| RAISING & LOWERING TIME | 6-8 SEC. (CUSTOMISABLE) |
| EMERGENCY FAST OPERATION | 2 SEC. ( OPTIONAL) |
| POWER SUPPLY | 415 V (AC), 50 HZ / 220V AC , 60HZ |
| PROTECTION CLASS | IP 68 |
| DUTY CYCLE | 100% |
| OPERATING TEMPERATURE | 30 DEG. CELSIUS TO +65 DEG. CELSIUS |
| ILLUMINATION | RED LED/REFLECTIVE STRIPS |
| FINISH | RAL PAINTED OR SS 304/316 COVER |
| MCBF | 50,00,000 |
| MANUAL LOWERING OPERATION | AVAILABLE |
| SAFETY AGAINST VEHICLE | LOOP DETECTOR |
| SAFETY AGAINST HUMAN TRAFFIC | PHOTO SENSOR |
| CONTROL UNIT | PLC BASED CONTROL UNIT WITH TAILOR MADE INTEGRATION WITH ALL ACCESS CONTROL DEVICES |
Outstanding features of Automatic Bollard Matrixcope MTC-D2043
SALIENT FEATURES

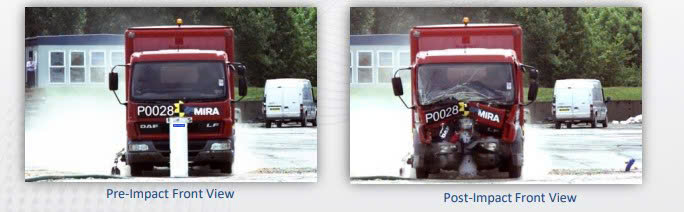

- 0m static penetration in physical crash test and 0.8m dynamic penetration
- Test carried out on singular bollard
- Galvanized and Epoxy coated for anti-corrosion
- Provision for Bollard Actuation in case of power sabotage
- 1.2m above the ground
- Can be easily integrated with all Access Control devices
- 100% Duty Cycle
SAFETY
- Safety against vehicle: Loop Detector
- Safety against human traffic: Photo Sensor
CONTROL UNIT
- Customisable External HPU or Integrated Sabotage Proof HPU along with
- PLC based control unit can be tailor made to the customer’s requirement.
- It is ready to be integrated to all access control devices.
