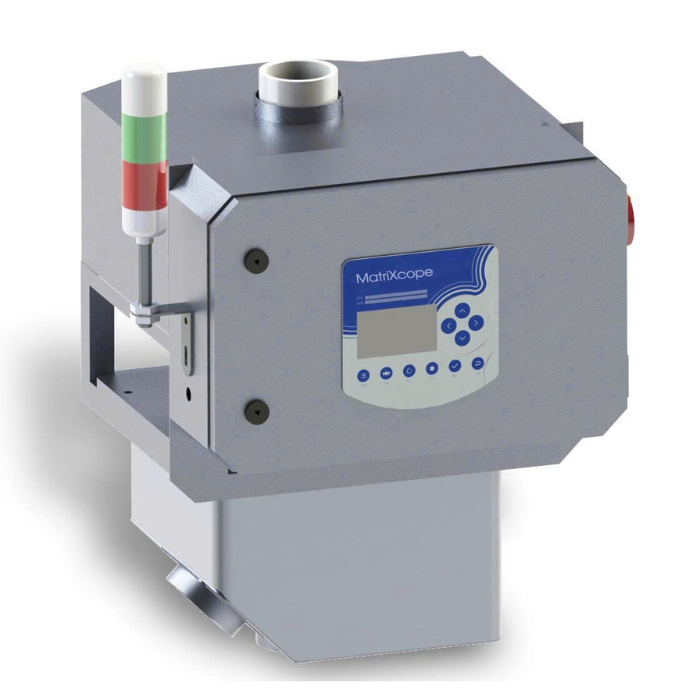

Metal Detector MatriXcope MTC-9080XPRO
The MatriXcope MTC-9080XPRO metal detector accurately detects foreign objects such as metals (ferrous, non-ferrous, stainless steel), ceramics, stones, and glass in bottled, canned, or jarred products—even when the packaging is metal-coated.
Product Documents
Downloads
Overview of the MatriXcope MTC-9080XPRO Metal Detector
The MatriXcope MTC-9080XPRO metal detector accurately detects foreign objects such as metals (ferrous, non-ferrous, stainless steel), ceramics, stones, and glass in bottled, canned, or jarred products—even when the packaging is metal-coated.
Its detection capacity per hour depends on the product’s weight, based on a reference density of 1000kg/m³. Custom technical specifications are also available, allowing customers to order tailored models to meet specific operational requirements.
Technical specifications of the MatriXcope MTC-9080XPRO metal detector
|
PHYSICAL SPECIFICATIONS |
|
| Specifications | P150 |
| Detection Diameter | 150 mm |
| Detection Sensitivity (without product) | Fe:φ0.6mm; Sus304:φ1.2mm Non-Fe:1.0mm |
| result Detection Capacity | 10 t/h(this detection capacity is the of desity 1000kg/m³) |
| Rejector | Active Flapper Rejector |
| Operation Panel | Key Press Button LCD Panel |
| Product Memory | 60 Kinds |
| Pressure requirements | .≥0.5Mpa |
| Environment | Temperature 10-40°c, humidity less than 85% (avoid freezing condensation. |
| Power Supply | AC220V 50/60Hz |
| Finishing | Sand-Blasted Finishing |
| Other Function | Remote Data Transfer via Ethernet Port; Dual Frequency |
|
Advantages |
The machine is suitable for the powder, granule or other forms of product |
| Compact design, small occupied space | |
| Rapid rejecting mechanism, reducing the waste of the materials | |
| In line with the GMP requirements | |
| Special design , anti interference | |
Outstanding features of the MatriXcope MTC-9080XPRO metal detector
- The sensitivity is in the empty state, and the actual sensitivity is relative with factory environment and product effect.
- Detecting volume per hour is relative with product weight, the valve of the table refer to a density is 1000kg/m3.
- The products of different specification can be ordered according to customer’s special.
With its high detection accuracy, sens itivity, and customizable features, the MatriXcope MTC-9080XPRO is an ideal solution for businesses in the modern food and beverage industry. To learn more about this product and other advanced quality control solutions, please visit https://matrixcope.com/.
Technical specifications of the MatriXcope MTC-9080XPRO metal detector
|
PHYSICAL SPECIFICATIONS |
|
| Specifications | P150 |
| Detection Diameter | 150 mm |
| Detection Sensitivity (without product) | Fe:φ0.6mm; Sus304:φ1.2mm Non-Fe:1.0mm |
| result Detection Capacity | 10 t/h(this detection capacity is the of desity 1000kg/m³) |
| Rejector | Active Flapper Rejector |
| Operation Panel | Key Press Button LCD Panel |
| Product Memory | 60 Kinds |
| Pressure requirements | .≥0.5Mpa |
| Environment | Temperature 10-40°c, humidity less than 85% (avoid freezing condensation. |
| Power Supply | AC220V 50/60Hz |
| Finishing | Sand-Blasted Finishing |
| Other Function | Remote Data Transfer via Ethernet Port; Dual Frequency |
|
Advantages |
The machine is suitable for the powder, granule or other forms of product |
| Compact design, small occupied space | |
| Rapid rejecting mechanism, reducing the waste of the materials | |
| In line with the GMP requirements | |
| Special design , anti interference | |
