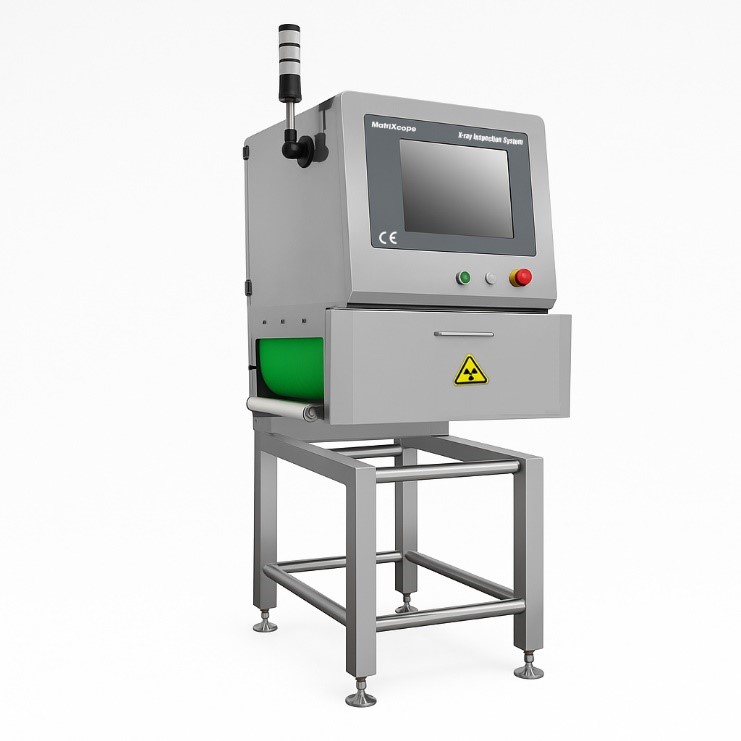

Intelligent X-Ray Inspection System For Sealing, Stuffing, Leakage Matrixcope MTC-88XPRO

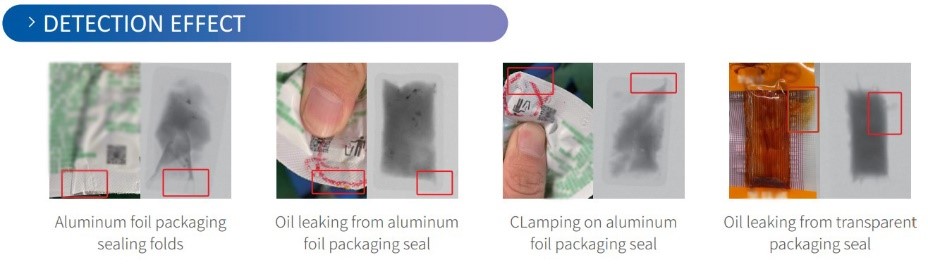

Matrixcope MTC-88XPRO precisely detects sealing defects, material clamping, and oil leakage in various types of packaging, while enhancing overall quality control efficiency across the production line
Product Documents
Downloads
Overview of Intelligent X-Ray Inspection System For Sealing, Stuffing, Leakage Matrixcope MTC-88XPRO
In the production of snack foods, issues such as loose sealing and material clamping often lead to oil leakage, contamination along the production line, and rapid product deterioration.
To address these persistent challenges, Matrixcope has developed the MTC-88XPRO Intelligent X-ray Inspection System, offering a comprehensive solution to ensure the highest standards of product safety and quality.
With advanced X-ray technology, the Matrixcope MTC-88XPRO precisely detects sealing defects, material clamping, and oil leakage in various types of packaging, while enhancing overall quality control efficiency across the production line. It is the ideal choice for food manufacturers seeking superior safety, hygiene, and reliability in their products.
|
PHYSICAL SPECIFICATIONS |
|
| Best Inspection Ability without Product | 0.3*0.3*0.3mm(SUS304 ball)
0.2*2mm( SUS wire) 0.8 mm (Glass Ball) 0.8 mm(Ceramic) |
| X-ray tube | MAX.350W/80kV Beryllium Window |
| Max Detecting Height | 160mm |
| Max Detecting Width | 240mm |
| Conveyor Parameter | Speed: 10-90m/min |
| Max Load: 10kg | |
| Working Direction | Left to Right |
| Conveyor Height | 750+100mm |
| Screen | Full-color TFT 15″ Touch Screen |
| O/S | Windows 7/10 |
| Connectivity | LAN port, USB port |
| Product Management | Complete product log |
| Parameter Adjustment | Auto learning/Manual setting |
| Image Management | Auto image save/print/analyses |
| Power Supply | 220V, AC, 50/60Hz |
| Body Material | SUS304 |
| Purification | Easy to wash |
| Cooling method | Air conditioner cooling |
| Operation temperature | 0-40°C |
| Operation humidity | 30-90% |
| X-ray emissions | < 1microsievert per hour |
| X-ray protection | Protective Curtain |
| Rejector | Tower Light & Buzzer |
