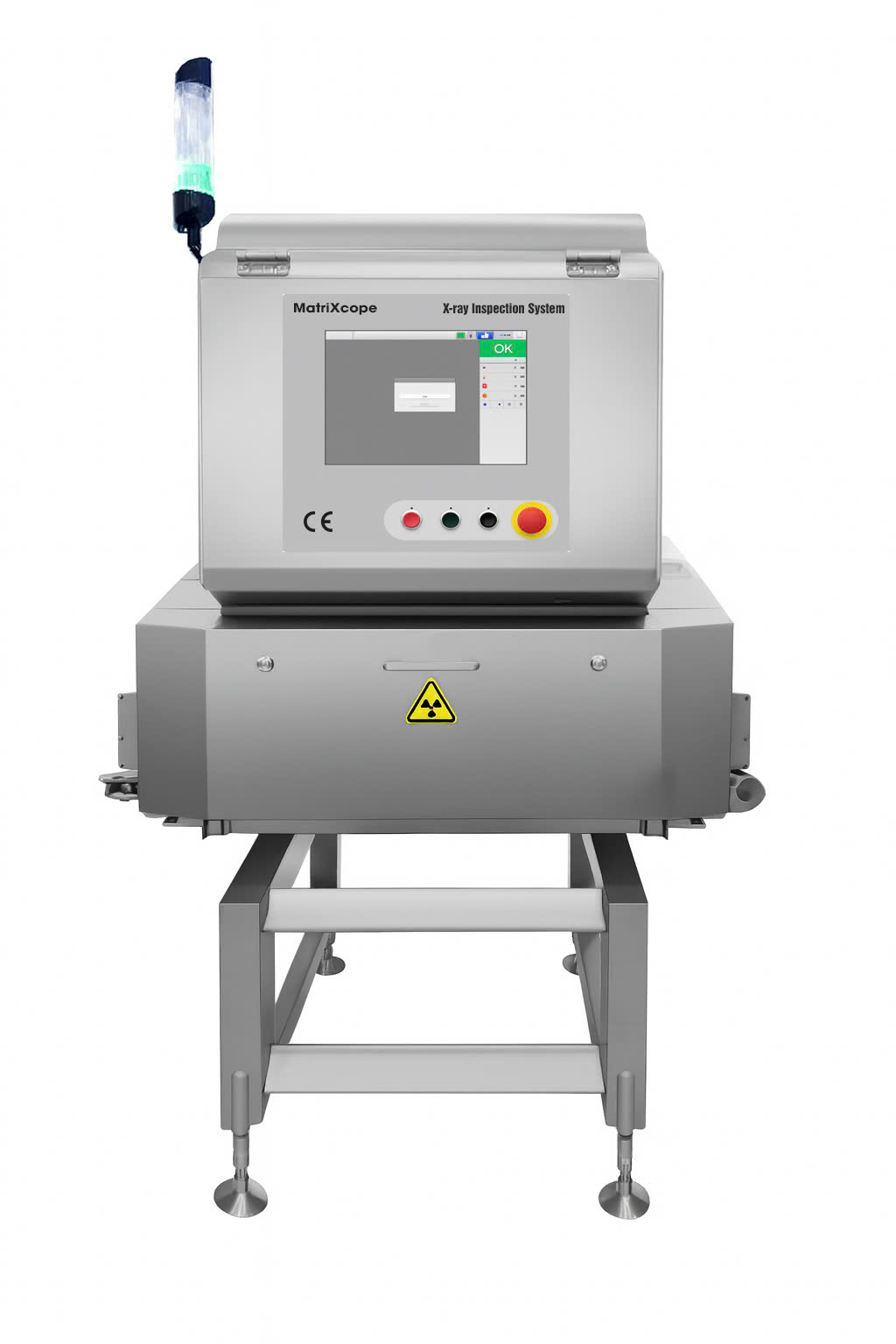

X-Ray inspection system for fish bones MTC-78XPRO
The Matrixcope MTC-78XPRO this X-ray inspection system offers auto recognition and auto rejection, seamlessly adapting to the speed of your deboning staff without any manual intervention.
Product Documents
Downloads
Matrixcope MTC-78XPRO – Advanced X-Ray Fish Bone Detection
The Matrixcope MTC-78XPRO sets a new standard in seafood safety and quality control. Designed for high-volume fish processing, this X-ray inspection system offers auto recognition and auto rejection, seamlessly adapting to the speed of your deboning staff without any manual intervention.
Outstanding advantages of X-Ray inspection system for fish bones MTC-78XPRO
-
Comprehensive Contaminant Detection

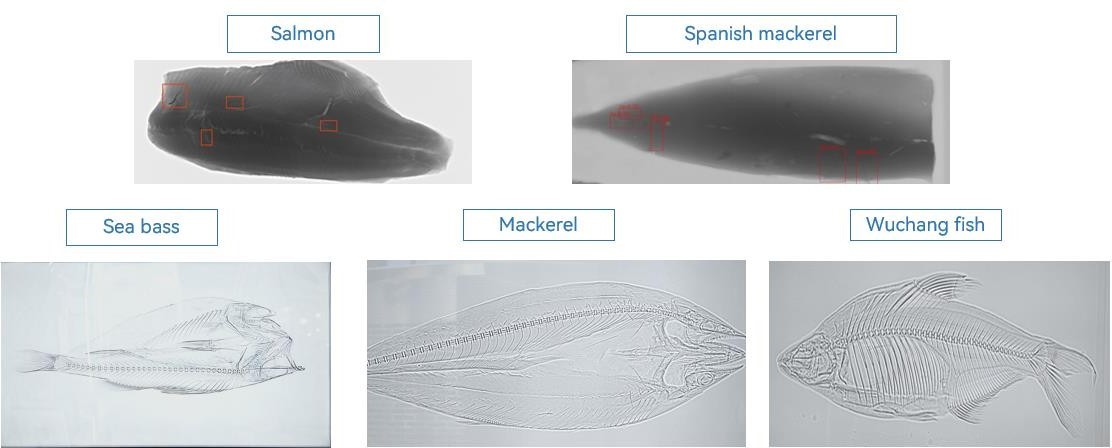

Accurately identifies foreign contaminants and fish bones in a wide range of products including basa, halibut, salmon, and cod.
-
HD Visual Support

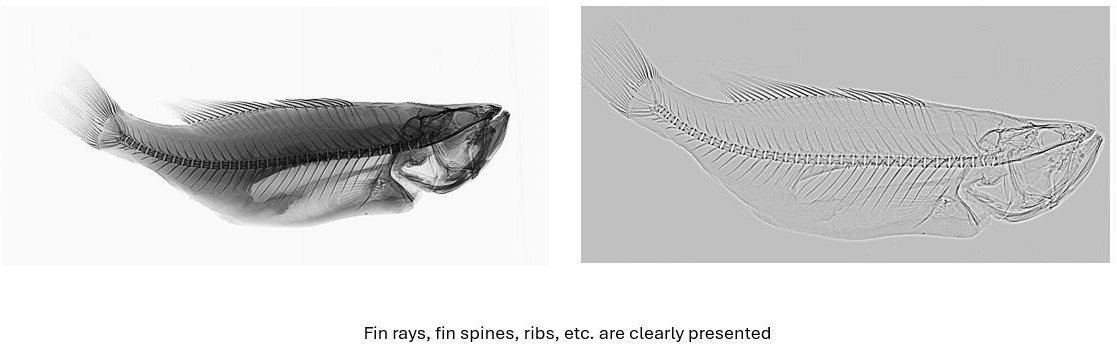

Pairs with an external high-definition display to clearly reveal even the finest fish bones, enabling precise manual removal when necessary.
-
Advanced Detector Options

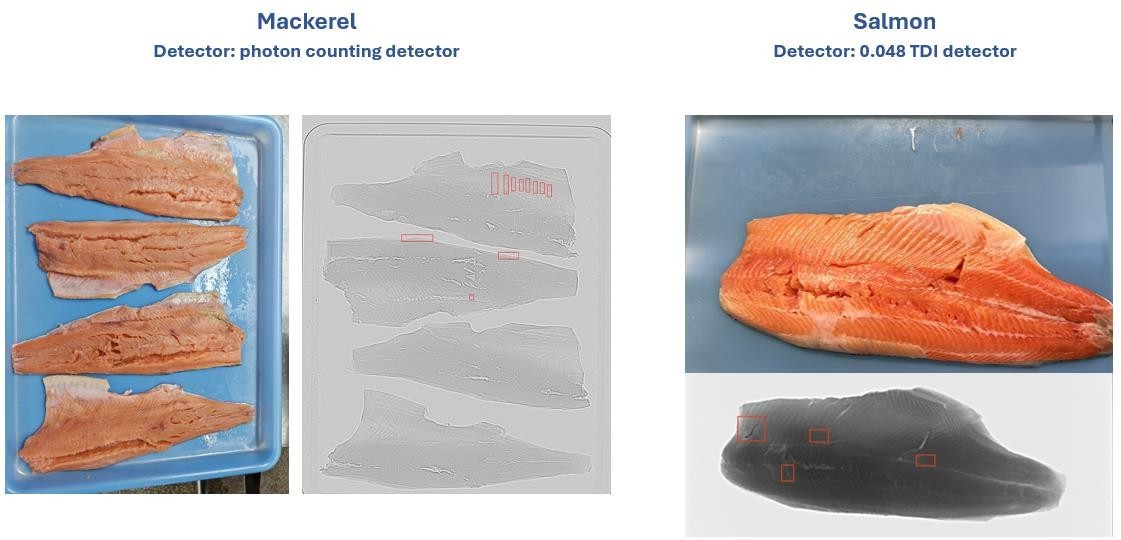

Multiple configurations—0.4 TDI, 0.1 TDI, 0.048 TDI, and photon-counting detectors—ensure optimal sensitivity for diverse production needs. -
Waterproof & Quick-Release Design
Built with IP66 waterproof rating and quick-release components for fast disassembly, effortless cleaning, and consistent hygiene. -
AI-Powered Precision
The AI detection algorithm intelligently identifies and marks tiny fish bones, boosting accuracy and reducing waste.
-
High Throughput
Handles 6–7 tons per hour, making it ideal for large-scale seafood operations.
Conclusion
With its combination of speed, precision, and hygienic design, the Matrixcope MTC-78XPRO empowers seafood processors to deliver bone-free, contaminant-free products with maximum efficiency. It’s the perfect solution for ensuring consumer safety while protecting your brand’s reputation.
| PHYSICAL SPECIFICATIONS | |
|
Best Inspection Ability |
0.3*0.3*0.3mm(SUS304 ball) 0.2*2mm( SUS wire)
1.0 mm (Glass Ball) 1.0 mm(Ceramic) |
| X-ray tube | MAX. 350 W/ 80kV (Beryllium Window) |
| Detector | 0.1mm TDI Detector |
| Max Detecting Height | 160mm |
| Max Detecting Width | 400mm |
| Conveyor Speed | 10-60m/min |
| Conveyor Height | 750+100 mm |
| Working Direction | From left to right |
| Screen | Full-color TFT 15″ Touch Screen |
| O/S | Windows 10 |
| Connectivity | LAN port, USB port |
| Product Management | Complete product log |
| Parameter Adjustment | Auto learning/Manual setting |
| Image Management | Auto image save/print/analyses |
| Power Supply | 220V, 50/60Hz，1 Phase |
| Body Material | SUS304 (Matt Finishing) |
| Purification | Easy to wash |
| Cooling method | air/water heat exchangers |
| IP Rating | IP66 |
| Operation temperature | 0-40°C |
| Operation humidity | 30-90% |
| X-ray emissions | < 1microsievert per hour |
| X-ray protection | Protective curtain |
| FOB(Shanghai) | USD 42,000 |
| Infeeder Conveyor (Optional) | USD 1,500 |
| Dual Lane Modular Chain Upward Retracting Rejector (Optional) | USD 4,000 |
Ray Inspection System for Fish Bones
Remarks:
The technical parameter above namely is the result of sensitivity by inspecting only the test sample on the belt. The sensitivity would be affected according to the products being inspected.
