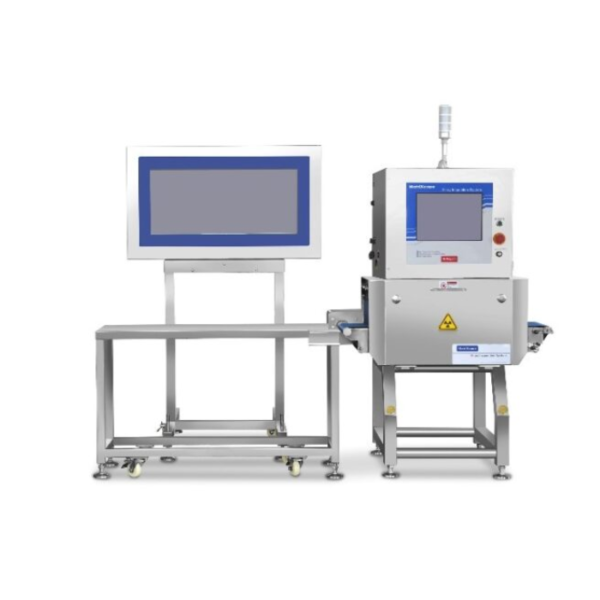

The Matrixcope MTC-76XPRO is a state-of-the-art X-ray inspection system designed specifically for detecting fish bones and metallic contaminants in processed fish meat. It offers cutting-edge technology for quality assurance in seafood processing, making it an ideal solution for production lines handling basa, cod, salmon, halibut, and more.
Outstanding Features of MTC-76XPRO
- Auto recognition & Auto rejection: It adapts to the speed of the deboning staff without the need for manual intervention
- Suitable for foreign contaminant and fish bone detection in fish meat, applicable to products such as basa, halibut, salmon, and cod.
- Not only can it detect foreign contaminants in fish meat, but it can also be paired with an external high-definition display screen to clearly display various types of fish bones in cod, salmon, and other fish, helping manual removal of fish bones accurately.
- 4K HD Screen
- Waterproof & Quick release: Equipped with quick-release functionality and an IP66 waterproof rating, allowing for quick disassembly and easy cleaning
- AI detection algorithm can more accurately identify and mark tiny fish bones
- High throughput: 6-7 tons per hour.
Key Technical Specifications
|
PHYSICAL SPECIFICATIONS |
|
| X-RAY | MAX. 80kV, 350W (Beryllium window) |
| Conveyor Parameter | Speed: Max 24m/min
Width: 200mm Height: 100mm |
| Best Inspection Ability | φ0.1*2mm (Fish Bone )
φ0.1mm (SUS304 ball) φ0.1*2mm (SUS304 wire) |
| Detecting Camera | TDI Camera |
| Working Direction | From right to left only |
| Screen | Full-color TFT 15″ Touch Screen |
| O/S | Window 7 |
| Power Supply | AC220V |
| Connectivity | LAN port, USB port |
| Product Management | Complete product log |
| Parameter Adjustment | Auto learning/Manual setting |
| Image Management | Auto image save/print/analyses |
| Body Material | Sus304 |
| Purification | Easy to wash |
| Cooling method | Air conditioned cooling |
| X-ray emissions | < 1microsievert per hour |
| X-ray protection | Lead-free protective curtain |
| Rejector | Alarm and belt stop |
Applications
- Ideal for fish fillet and seafood processing plants, especially for high-end or export-oriented production to markets with strict quality standards like Japan, the EU, and the U.S.
- Minimizes customer complaints due to undetected fish bones or contaminants, enhancing brand reputation and food safety compliance.
If you’re looking to enhance food safety, reduce product recalls, and meet international export standards, the Matrixcope MTC-76XPRO is your trusted solution.
