Matrixcope CNC Multi-Layer Cutting Machine MTC-HDF3441
MTC-HDF3441 is a professional-grade automatic cutter engineered for garment factories, upholstery workshops, and industrial textile producers.
Product Documents
Downloads
Overview of Matrixcope CNC Multi-Layer Cutting Machine MTC-HDF3441
The Matrixcope CNC Multi-Layer Cutting Machine MTC-HDF3441 is a professional-grade automatic cutter engineered for garment factories, upholstery workshops, and industrial textile producers. Combining computerized motion control with user-friendly operation, the MTC-HDF3441 delivers fast, accurate, and material-saving cutting performance, making it an excellent solution for high-volume production.
Outstanding features of Matrixcope CNC Multi-Layer Cutting Machine MTC-HDF3441
Exceptional Cutting Accuracy
Cuts each layer with millimeter precision, allowing products to move straight to sewing without extra trimming—boosting efficiency and consistency.
Zero-Distance Cutting
Innovative design minimizes fabric waste and reduces raw material costs while maintaining sharp, clean edges.
Flexible Data Integration
Control software supports multiple file formats and allows direct import of popular design and typesetting files.
Smooth Motion Control
Advanced algorithms ensure seamless transitions between straight lines and curves for perfect cuts every time.
Automatic Knife Sharpening
Built-in sharpening technology adjusts to different fabrics, extending blade life and reducing downtime.
Fully Automated Operation
Eliminate paper templates with a fully computerized system that supports continuous mass production.
| Parameter | MTC-HDF3441 |
|---|---|
| Clipping Height | 1 – 11 cm |
| Effective Cropping Width | 2300 mm |
| Effective Cutting Length | Automatic feeding, unlimited length |
| Automatic Spreading Length | 16.8 m spreading table (total working length 24 m) |
| Land Size | 3300 mm wide × 4000 mm long × 1600 mm high |
| Knife Transport Method | Reciprocating vibrating knife transport |
| Cutting Speed | 0 – 60 m/min |
| Cutting Knife Grinding | Double wheel counter-rotating grinding |
| Adsorption Method | Frequency conversion vacuum constant pressure control mode |
| Safety Devices | Automatic induction |
| Power Supply | Three-phase AC380 V / 50 Hz / 25 kW |
| Operate Computer | Ordinary computer, Windows 7 |
| Operation Panel | Touch control panel |
| Clipping Parameters | Input LAN, USB |
| Device Weight | About 4500 kg |

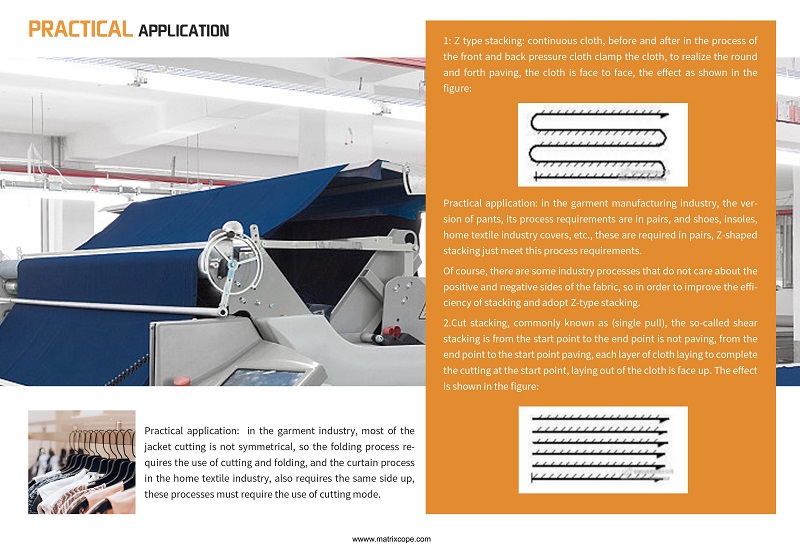

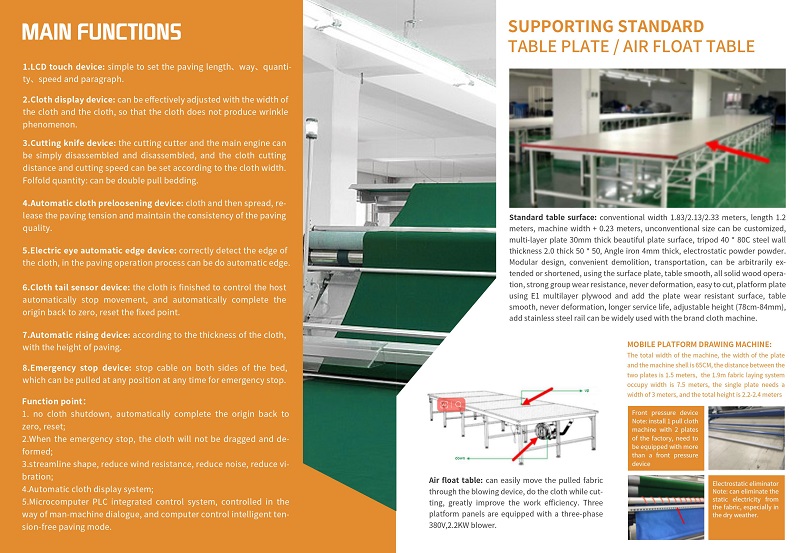

| Standard Fitting Features | 1. Automatic adjustment of cutting speed 2. Secondary compensation for cutting vacuum 3. Inductive safety protection device 4. Automatic feeding platform 5. Air flotation workbench × 14 sheets 6. Automatic spreading machine × 1 (single pull, double pull, cutting, automatic edge alignment, etc.) |
| Other Functions | Mobile cutting device, automatic feeding device, pattern scanning, adsorption bed |
| Operating System Capabilities | Supports overall rotation of the nesting chart; knife-edge conversion; single-piece recutting; one-key deletion of overlapping areas (removal of repeated lines); residual cloth cutting |

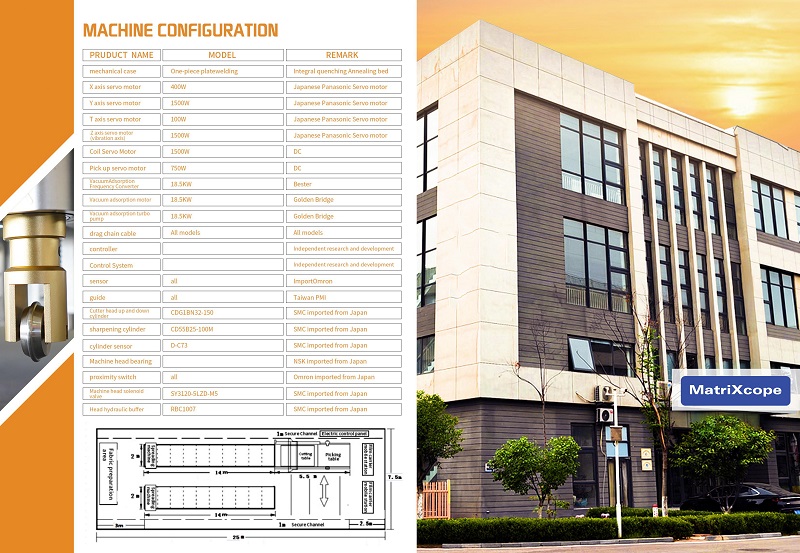

| Main Machines & Accessories | 1. Automatic multi-layer cutting bed 2. Automatic cloth spreading machine 3. Air flotation table |
